Applied to the better working of sing-phase motor in 50Hz/60Hz frequency AC power system.
Suit to Commercial Refrigerators, Air conditioners, Water Pumps and other electric motors appliactions.
Product Name: Motor Run Capacitor
Color: Silver Tone
Dielectric Material: Metallized Polypropylene Film
Ambient temperature: -25? to + 70?
Capacitance range: 45uF +/- 5%
Rated voltage: 450V AC 50/60HZ
Capacity: precision: J:±5% K:±10%
Insulation resistance: T-T=3000MÙUf(20?,100VDC)
Tg loss tangent value: tgä=0.002(100HZ,20?)
Withstand voltage: 2.0Un 3S
Dimensions: (Diameter x Height)
Type: 45uF - 4.9 x 12.5cm
The edge of the capacitor thickening of the metal zinc aluminum film as electrodes and media.
The film was taken up in an aluminum casing after being wound up by a winding machine.
And then in the shell into high purity castor oil to keep the vacuum state, and can make the product high temperature.

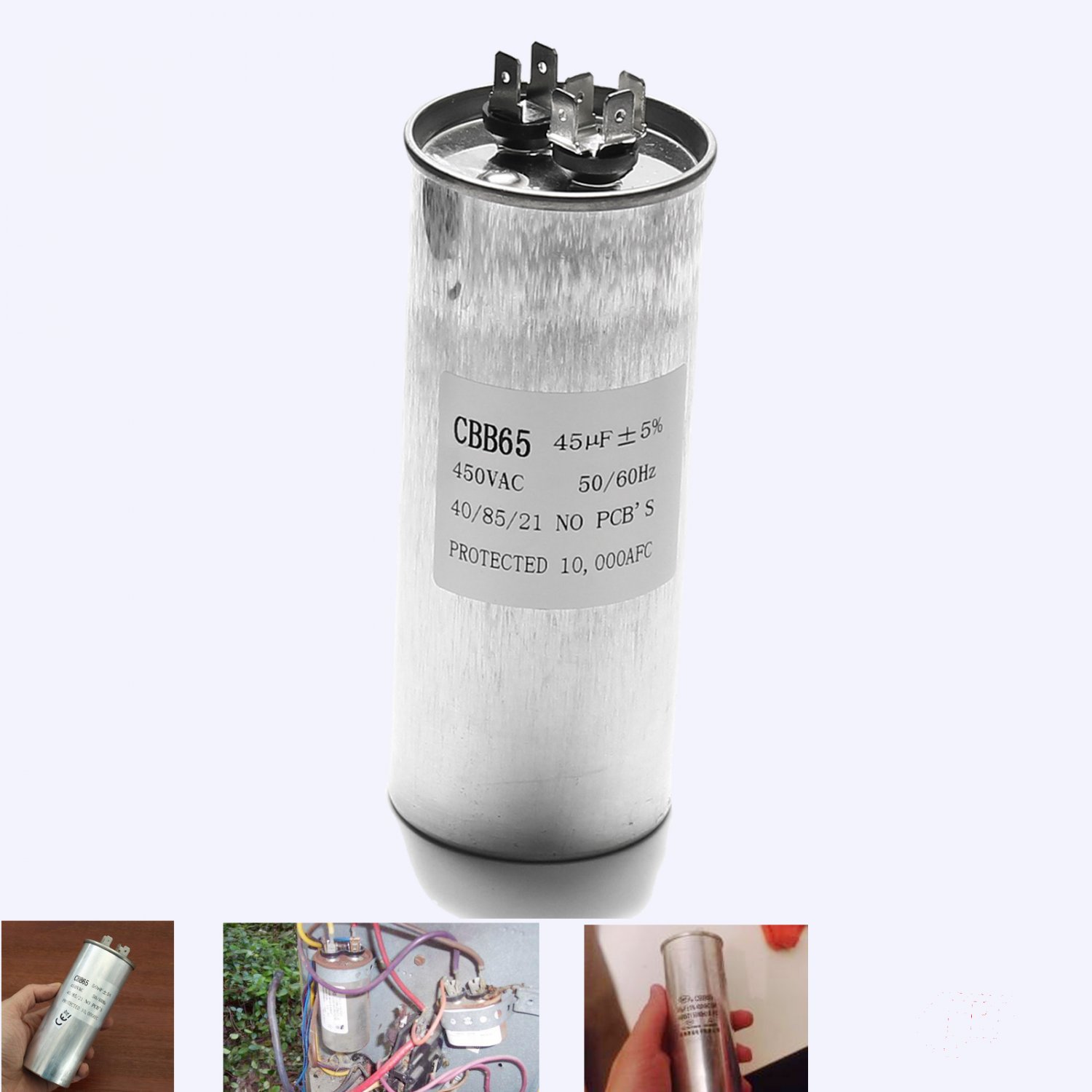

1pc x CBB65 450VAC 45uf Motor Capacitor Air Conditioner Compressor Start Capacitor
