$7,850.00
Add to Cart

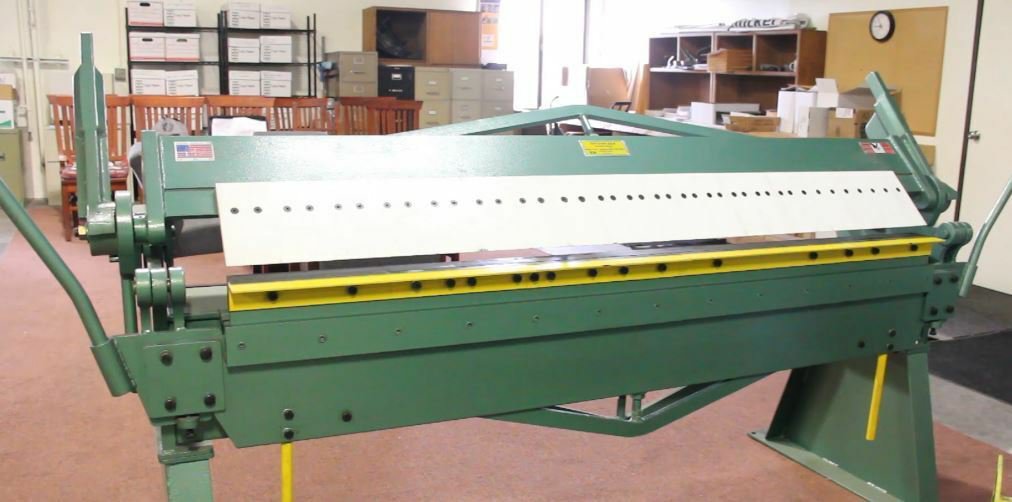

TIN KNOCKER® Universal Hand Brake: TK 616
More than 10 available
Details
Shipping: US-Mainland: $595.00 (more destinations)
Condition: Brand new
Returns: does not accept (more)
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Tin Knocker® Universal Brake 616An incredibly universal hand brake. Featuring box & pan fingers up top and segmented, relocatable bend apron tooling below. Perfect for complex parts to include flange down bends, transverse duct forming & much more. With strategically positioned counter weights this brake makes for easy and smooth manual bendingSpecifications:Capacity with lower tooling flanges: 72” x 16 gauge (1.6mm)Capacity without lower tooling flanges, 72” x 20 gauge (1.0mm)Lift of beam: 1.5″” (38.1mm)Front to back ram adjustment: 1/2″ (13mm)A minimum reverse bend of 5/8″ (16mm)Min flange width: 1″ (25mm)Finger widths: 1″, 3″, and 4″ (50.8, 76.2, and 101.6mm)Lower segment tooling widths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)Bending beam tooling (segmented) lengths of 1″, 1.5″, 4″, 6″, 8″, 12″, and 20″ (25, 38, 102, 203, 305, 508mm)Maximum transverse bend in center of machine: 2″ (50.8mm)Maximum transverse bend at end of machine: 3″ (76.2)Footprint with counter weights: 95x38x54in (2413x965x1346x1372mm)A shipping weight of 2800lb (1273kg) –
