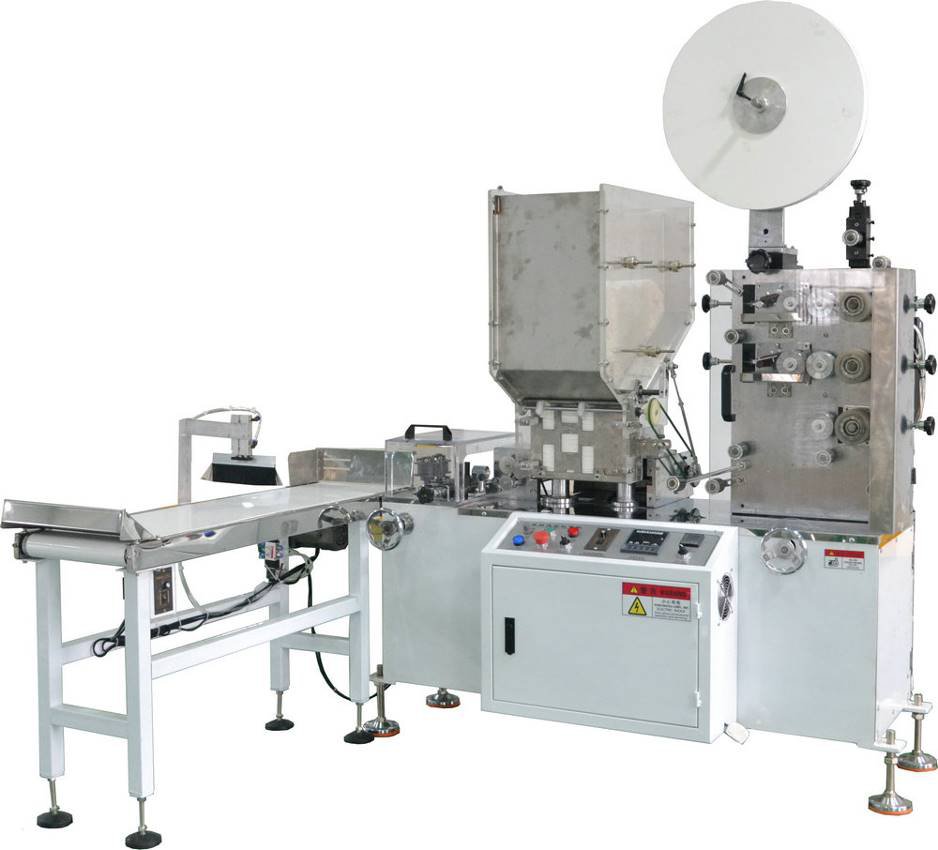

Straw Single Packing Machine with 2 Colors Printer

This machine is used to packing drinking straws in three sides sealing bag, printing function is available when using paper as packing material.
Characteristics:
1.Having two colors printing device can be chosen
2.With automatic product counting function, product quantity may pre-set, once the pre-set value is reached. the machine will give an alarm. And the dam-brush will separate each set quantity packaged straw.
3.Printing, feeding, and packing can complete in one processing.
4.Packing straw length is adjustable within a certain range.
Specification
Drink Straw Diameter(mm) 5-12mm
Need change some parts.
Straw Length(mm) Standard: 190-210mm
Extra mould: 170-260mm
By change the sealing and cutting mold, printing cylinder
Packing Model Paper type: wrap paper
Sealing type: 3 side sealing
25-30mm；Paper width: 25-30mm
Production Speed With printing：300pcs/min
Without printing＞400pcs/min
Printing Printing Color：Double Colour
Printing type: flexographic
2.38mm;
Thickness of plate (Including Two-sides Glue Paper): 2.28mm+double-sided adhesive 0.1mm(3M Brand)=2.38mm
Paper Unwinding Frame 1SET
Tension adjust：Mechanical tension device, adjusted by manual
Wrap paper roller core size：3inch，4.7inch
Straw feeding hopper Material :Stainless steel frame，
Plexiglass: Adjustable to match straw length
Straw down device：induction and swing arm
Feeding model：by chain feeding
Printing Unit
Single/Double Color
Power transmission ：By chain
Between printing unit: By gear
Traction unit：1sets, rubber roller and chrome plated roller
Printing unit：Ink container, anilox roller, doctor blade, printing cylinder, rubber roller
Dry unit：1SET , by hot air, with temperature
color register：By manual
Sealing and Cutting Parts Lengthways sealing：Sealing roller-on couple，pressure adjusted by manual
Horizontal：Sealing roller-on couple，pressure adjusted by manual, with cutting knife-one couple
Material：mould steel
Conveyor Belt 1set， Synchronous reduction motor+ controller
Counter dam-brush: one set, lifting by pneumatic cylinder
Controller Counter and buzzers：1set，HUALI Brand
Controlling inverter: 1.1KW Schneider
Temperature controller：1set，KEQIANG Brand
Low-voltage electric parts: Schneider
Total Power (Kw) 1.5 (220V)
Over size (mm) 1900×1000×1600 (L×W×H)
Weight (Kg) 400
