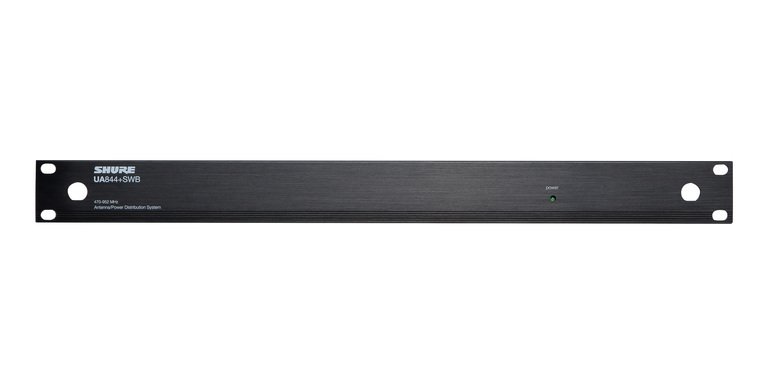

You are purchasing a brand new factory sealed Shure UA844+SWB
Antenna Power Distribution System,470-952 MHz. GET IT HERE FIRST! FAST RELIABLE SHIPPING TO YOUR DESTINATION!

The Shure UA844+SWB is a five-way active antenna splitter and power distribution system for QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers, 470-952 MHz.

The Shure Model UA844 is a UHF antenna distribution system that allows the expansion of wireless microphone systems by splitting one pair of antennas to multiple receivers. It also amplifies RF signals to compensate for insertion loss that results from splitting signal power to multiple outlets. A single UA844 system can support up to four wireless receivers. A maximum of five systems may be used with a two-tiered configuration (see user guide).

The UA844SWB replaces the discontinued model UA844US.

Components:

Front-mounting antenna hardware
Rack-mounting hardware
External power supply
Antenna cables and hardware for receiver connections
Locking and non-locking DC power cables for receiver connections
Shure UA844+SWB Features:
Wideband UHF (470-952 MHz)
Five-way RF signal output
For QLX-D, ULX, ULX-D, SLX and BLX (BLX4R only) receivers
Shure UA844+SWB Specifications:
Power Requirements 14 to 18V DC
DC Output 14 to 18V DC (x4)
Output Current Combined total from all DC outputs: 2.5A, maximum
Operating Temperature Range: -7°C (20°F) to 49°C (120°F)
Dimensions (HxWxD): 1.77" x 19.01" x 6.77"
Net Weight: 3.6 lbs
RF Input:

Connector Type: BNC
RF Frequency Range: 470 to 952 MHz
Bias Voltage: 12V DC (150 mA max.) (x2)
Impedance: 50 Ohms
RF Output:

RF Frequency Range: 470 to 952 MHz
Output Intercept Point (OIP3): 21 dBm, typical
Connector Type: BNC
Impedance: 50 Ohms
Output Connector Isolation: 30 dB, typical
Gain Input to any output port (Unused ports terminated in 50 Ohms): -0.5 to 3.0 dB

We are an authorized distributor for all brands listed and each purchase is backed by a full manufacturers warranty.

Please note pics and descriptions are from the manufacturer.

Delivery in the U.S. will take between 4 to 6 business days. Shipping is FREE within the United States via UPS. Most orders ship within 3 to 4 business days of purchase with tracking. We accept Paypal and all major credit cards via a merchant account. Items will only be shipped to confirmed Paypal addresses. NO EXCEPTIONS! Email us for any additional info or special order requests.
