iPod interface + auxiliary audio 3.5mm aux input kit. For Nissan Infiniti radio

ReplacementRadios, one of the largest factory audio/video websites, has branched out!! If you’ve been to our site, you know we have a HUGE selection of OEM radios and compatible accessories. Now we’re offering a few select products here too. Same great ReplacementRadios quality.....in a new location.

SUMMARY
Brand new
Plug and play
-Unlike other kits, there's no splicing required
Control your iPod functions from the radio OR the iPod
-Gives you the option of keep it out of sight
Displays song title & artist on satellite capable radios
Charges your iPod while it is connected
Compatible with most 30-pin iPods
A 30-pin Bluetooth receiver is available
Allows use w/ newer Apple devices
-(See DETAILS)
A 30-pin to Lightning adapter is available
-From the Apple store
--(Knock-offs don't work right!)
Apple-licensed connector for superior performance
Has an extra input:
-Add Bluetooth, HD Radio, Sirius or another device
--See DETAILS
Or use the included auxiliary input cable
-Has both RCA & 3.5mm stereo mini (headphone)
Direct connection
-No FM modulator or cassette adapter required
Compatible with factory radios only
-Not aftermarket radios
Compatible with or without factory steering wheel controls
Compatible with or without remote factory CD changer
Compatible with or without premium sound system (Bose/etc)
Compatible with or without factory RSE DVD system
-Rear Seat Entertainment
Not compatible with factory navigation radio
Not compatible with factory satellite radio in 2004-07 models
-Must be dis-connected
Not compatible in 2009+ Rogue vehicles with PY00F or CY26G radios
-That is the face code, found in top right corner of radio
Not compatible in 2011+ Sentra vehicles with CY13F radio
-That is the face code, found near the display window
Not compatible in 2004-2007 Infiniti vehicles with factory satellite radio
-Unless you disconnect the satellite tuner from the wiring harness
Radio must have one of the following printed on button or face:
-SAT, CAT, CATEGORY, CH or CHANNEL
May require adjustment of volume when in use**
We're an authorized iSimple and Radio Specialty dealer
-Ensures you get a valid warranty
One year warranty

DETAILS
This digital iPod interface by iSimple is a state of the art product that allows you to directly connect virtually a large number of iPods (see list below) to the auxiliary input port on the back of your factory radio. The cable that connects this to your radio is a T-harness, so it has an extra plug to allow you, in most cases, to retain a factory auxiliary input currently connected to the radio. (DVD, etc)

Unlike some other products, this interface allows full control of 30-pin iPod functions through the radio controls OR from the iPod itself. This includes: track up/down, playlist selection, shuffle modes, scan and repeat. Don't have a 30-pin connector? Check out these optional, extra-cost add-ons:

--Option 1) You can add a Bluetooth receiver that will allow music to stream through the included 30-pin iPod cable. (Search our store for BLUE_AUDIO.) With the optional, extra-cost Bluetooth receiver, the 30-pin cable becomes an Aux Input for audio from your Bluetooth equipped device. Whether it be Apple with a Lightning connector, Android with a micro-USB or a Windows device, the hard-wired connection no longer matters because you're streaming wirelessly. Want to control tracks wirelessly too? We also offer an optional, extra-cost Bluetooth remote. You would use it in conjunction with the BLUE_AUDIO option. (Search our store for BLUE_BUNDLE to find both items bundled together or BLUE_REMOTE for the remote by itself.)
--Option 2) If you want a hard-wired Lightning connection, you can try the 30-pin to Lightning adapter from Apple. (Do NOT buy a knock-off. They usually don't work for anything but charging. If you're buying anywhere other than Apple, you're probably getting a knock-off!) Check the Apple product reviews though. Their cable version of the adapter gets average to below average reviews for functionality. Their 'block' version of the adapter gets bad reviews for it's size at the connector, which prevents it from being used with many cases.

If you have a 30-pin Apple device and have it connected directly to the included cable, this interface allows control of iPod functions through the radio controls OR from the iPod itself. This includes: track up/down, playlist selection, shuffle modes, scan and repeat. This would all be in lieu of the Bluetooth music receiver though, since it connects to the Apple cable as well.

This works with your factory satellite-ready radio. (Must have a SAT, CAT, CATEGORY, CH or CHANNEL label on radio.) Playlist, track name, artist and album name are displayed on the factory radio when you are in radio control mode. If you are in iPod control mode or are streaming music through the included Bluetooth receiver, the only feature you can control from the radio is the volume.

**Nissan and Infiniti radios are known for slightly lower volume levels through the port on the back of the radio. Consequently you may find you need to adjust your radio volume up a bit when using this device.

Unlike competitor's products, this includes an auxiliary (aux) input cable so you can add another device. (mp3 player, satellite radio, CD changer, DVD player, etc). You can choose from RCA jacks OR a stereo mini plug. Or, use the port to add something cooler, like HD Radio (with the HDRT tuner package - not included) OR Sirius satellite with the SCC1 tuner and ISSR11 cable (neither are included.) You cannot, however, have more than two sources connected at the same time. The Aux cable and the iPod cable (be it with or without the Bluetooth receiver attached) both count as a source, so you would have to fore-go use of one of those two connections to free up a port for HD Radio or Sirius radio. If you want to add Sirius or HD Radio, please send us a message. There are many details about the optional components that are not addressed in this ad.

PLEASE NOTE: We update these interfaces with the latest iSimple firmware before they ship. This is important because it ensures you get the latest features, fixes and application updates. Why take a chance getting an older version, only to find you need to buy a cable, fire up your computer, download some software and figure out how to update it just so it actually works with your vehicle or does what it's supposed to do? Save time, money and aggravation and buy from ReplacementRadios instead.

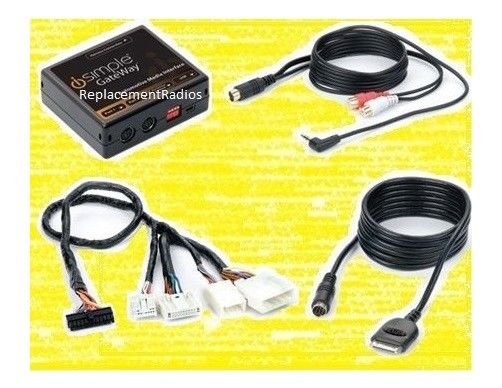

Included with this package:
--Interface module (PXAMG)
--Cable to connect 30-pin iPod to interface (ISPDC11)
--T-harness to connect interface behind factory radio (PGHNI2)
--Auxiliary input cable with RCA and stereo mini plugs
--Operation and connection manual

Compatible with all Apple products with 30-pin connector.

APPLICATIONS
This works for the following vehicles, provided you meet the requirements listed in the SUMMARY section of this ad

Year(s) Make Model Trim Level Additional Info

—2007-2008 INFINITI G35 ALL TRIM LEVELS
—2008 INFINITI G37 ALL TRIM LEVELS
—2006-2007 INFINITI M35 ALL TRIM LEVELS
—2006-2007 INFINITI M45 ALL TRIM LEVELS
—2009-2011 NISSAN 370Z ALL TRIM LEVELS
—2007-2011 NISSAN ALTIMA ALL TRIM LEVELS
—2008-2013 NISSAN ARMADA ALL TRIM LEVELS
—2009-2010 NISSAN CUBE ALL TRIM LEVELS
—2011 NISSAN JUKE ALL TRIM LEVELS
—2007-2013 NISSAN MAXIMA ALL TRIM LEVELS
—2009-2011 NISSAN MURANO ALL TRIM LEVELS
—2008-2013 NISSAN PATHFINDER ALL TRIM LEVELS
—2007-2012 NISSAN ROGUE ALL TRIM LEVELS
—2007-2011 NISSAN SENTRA ALL TRIM LEVELS
—2007-2011 NISSAN VERSA ALL TRIM LEVELS
