$100,000.00
Add to Cart

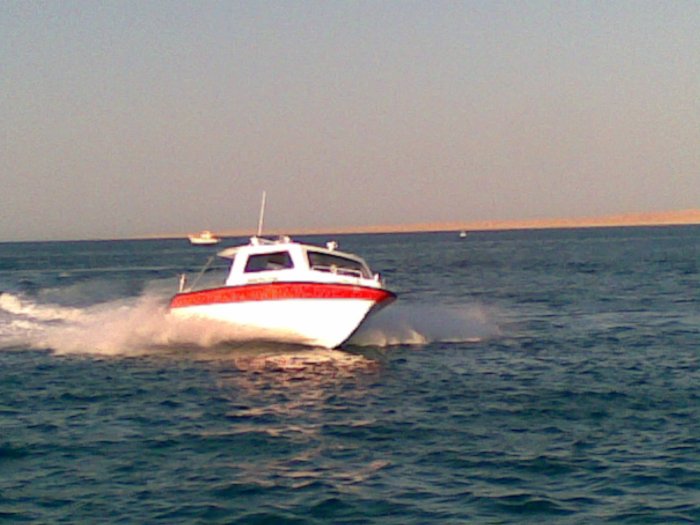

Patrol Boat
3 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Main Dimensions:
Length Over All: 10.00 meters
Beam 3.00 meters
Draft: 0.60 meters
Power: 2 x 200 HP Yamaha
Counter rotating Outboard Engines
Speed: In excess of 30 knots at light load
Capacity: 10 persons
Colour: Orange
Hull and Deck
Identifying Marks:
Construction
o The boat is a mono hull with a deep V.
o The boat will be constructed using Class-approved fiberglass and resin.
o Hull thickness will be approximately 9 mm with 8 layers of different fiberglass densities.
o Deck will be approximately 8 mm thick with 7 layers of different fiberglass densities and a plywood, foam or balsa sandwich to reinforce the deck passages.
o Hull frames will be constructed in plywood covered by 4 layers of fiberglass on both sides.
o Surfaces will be finished in antiskid fiberglass in all exposed areas.
General Arrangement:
o The fore deck will include 2 side benches.
o Marine Head including an electric toilet, sink and shower
o Small 12VDC refrigerator
o Pilot and Navigator Console with Head compartment forward.
o Cabin with bench seating on the sides behind the Pilot’s Console.
o Windows in aluminium (Sliding and fixed )
o Windscreen with Plexiglas
o Open deck areas aft will be shaded by a fixed shade
o Aft engine well for two outboard engine
o Swim ladder
Equipment:
o Steering system:
a) Hydraulic steering
b) Steering Wheel
o Remote Control: Mechanical
o Plumbing:
a) Freshwater system:
• GRP tank, 120 liters
• Automatic fresh water pump
b) Fuel system:
• GRP fuel tank, 350 liters.
• Fuel level gauge.
c) Blackwater system:
• GRP tank, 70 liters
• Head with marine electric toilet, holding tank, discharge through hull or through deck pump-out.
• Vent with odor filter
d) Greywater system:
• GRP tank, 80 liter
• Through hull discharge
• Vent
e) Bilge pumps
• Automatic, with automatic and manual settings
o Deck Hardware
a) Cleats, three on each side, 10”, Stainless Steel
b) Divers’ ladder
c) Handrails in Stainless Steel
d) Heavy duty fender D-type
e) Sun shade, if required
o Electrical, Electronic Systems and Navigation
a) 12 volt DC system with waterproof panel
b) Cathodic protection on engines
c) Compass
d) GPS, portable
e) Navigation lights
f) Portable generator 1000 m Ahs
g) Searchlight, manually operated from bridge
h) Siren
i) Strobe light bar
j) VHF 25 Watts with loud hailer
Length Over All: 10.00 meters
Beam 3.00 meters
Draft: 0.60 meters
Power: 2 x 200 HP Yamaha
Counter rotating Outboard Engines
Speed: In excess of 30 knots at light load
Capacity: 10 persons
Colour: Orange
Hull and Deck
Identifying Marks:
Construction
o The boat is a mono hull with a deep V.
o The boat will be constructed using Class-approved fiberglass and resin.
o Hull thickness will be approximately 9 mm with 8 layers of different fiberglass densities.
o Deck will be approximately 8 mm thick with 7 layers of different fiberglass densities and a plywood, foam or balsa sandwich to reinforce the deck passages.
o Hull frames will be constructed in plywood covered by 4 layers of fiberglass on both sides.
o Surfaces will be finished in antiskid fiberglass in all exposed areas.
General Arrangement:
o The fore deck will include 2 side benches.
o Marine Head including an electric toilet, sink and shower
o Small 12VDC refrigerator
o Pilot and Navigator Console with Head compartment forward.
o Cabin with bench seating on the sides behind the Pilot’s Console.
o Windows in aluminium (Sliding and fixed )
o Windscreen with Plexiglas
o Open deck areas aft will be shaded by a fixed shade
o Aft engine well for two outboard engine
o Swim ladder
Equipment:
o Steering system:
a) Hydraulic steering
b) Steering Wheel
o Remote Control: Mechanical
o Plumbing:
a) Freshwater system:
• GRP tank, 120 liters
• Automatic fresh water pump
b) Fuel system:
• GRP fuel tank, 350 liters.
• Fuel level gauge.
c) Blackwater system:
• GRP tank, 70 liters
• Head with marine electric toilet, holding tank, discharge through hull or through deck pump-out.
• Vent with odor filter
d) Greywater system:
• GRP tank, 80 liter
• Through hull discharge
• Vent
e) Bilge pumps
• Automatic, with automatic and manual settings
o Deck Hardware
a) Cleats, three on each side, 10”, Stainless Steel
b) Divers’ ladder
c) Handrails in Stainless Steel
d) Heavy duty fender D-type
e) Sun shade, if required
o Electrical, Electronic Systems and Navigation
a) 12 volt DC system with waterproof panel
b) Cathodic protection on engines
c) Compass
d) GPS, portable
e) Navigation lights
f) Portable generator 1000 m Ahs
g) Searchlight, manually operated from bridge
h) Siren
i) Strobe light bar
j) VHF 25 Watts with loud hailer
EG, Red Sea
