$300.00
Add to Cart

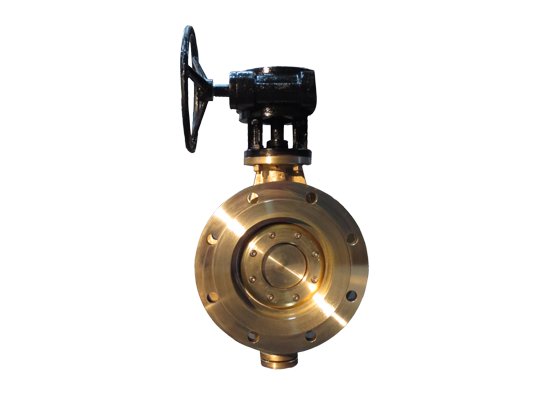

Triple Offset Butterfly Valve, triple eccentric Buterfly Valves
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: New other, see desc
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
FREE-Valve’s Triple Offset Butterfly Valve adopt triple offset principle to design, makes the movement track on facing space reach to idealization, and there are no attrition and no intervene between sealing pair , furthermore, the sealing material has been selected reasonably, thereby it ensure sealing performance, wear resistance, high temperature resistance capability of valve.
Features
1. Reliable sealing, convenient operation, opening and closing fast.
2. It adopt triple offset elasticity or multiple layers hard sealing configuration, the hermetical capability can reach to reliable sealing performance.
3. The seal of disc can be replaced by loosening the disc ring bolts, saving the cost of the valve.
4. According to the requirements of medium conditions, overlaying or spray welding different sealing materials on the sealing surface of the valve seat.
5. It has characteristic of super long usage life, frictionless closure,high temperature etc.
Technical specifications
1) Size Range：NPS2~NPS60;DN50~DN1500
2) Pressure Range：Class 150~Class 300 ;PN10 ~PN40
3)Body material：Carbon steel, stainless steel & other materials
4) Sealing material：Stainless steel,hard alloy& other materials
5) Connection method：Flange,wafer, weld .
6) Operating method：Worm gear,electric,pneumatic .
7) Pressure test:GB/T13927; API598
8) Face to Face: GB/T12221; API609.
Applicable
FREE-Valve’s Triple Offset Butterfly Valve is applied to use in heating system, chemical, petroleum, natural gas, refining, energy ,power plant condensates waterworks, water treatment and the role of regulating valve.
Features
1. Reliable sealing, convenient operation, opening and closing fast.
2. It adopt triple offset elasticity or multiple layers hard sealing configuration, the hermetical capability can reach to reliable sealing performance.
3. The seal of disc can be replaced by loosening the disc ring bolts, saving the cost of the valve.
4. According to the requirements of medium conditions, overlaying or spray welding different sealing materials on the sealing surface of the valve seat.
5. It has characteristic of super long usage life, frictionless closure,high temperature etc.
Technical specifications
1) Size Range：NPS2~NPS60;DN50~DN1500
2) Pressure Range：Class 150~Class 300 ;PN10 ~PN40
3)Body material：Carbon steel, stainless steel & other materials
4) Sealing material：Stainless steel,hard alloy& other materials
5) Connection method：Flange,wafer, weld .
6) Operating method：Worm gear,electric,pneumatic .
7) Pressure test:GB/T13927; API598
8) Face to Face: GB/T12221; API609.
Applicable
FREE-Valve’s Triple Offset Butterfly Valve is applied to use in heating system, chemical, petroleum, natural gas, refining, energy ,power plant condensates waterworks, water treatment and the role of regulating valve.
CN, Henan
