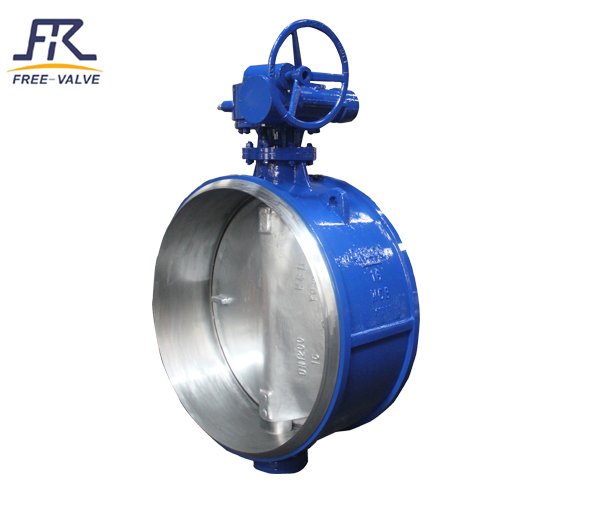

Butt Welded Butterfly Valve,Butt Weld Butterfly Valve
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: New other, see desc
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
FREE-Valve’s Butt Welded Butterfly Valves are triple offset structure and suitable for high temperature , high pressure , corrosion etc. Its are quarter-turn valves which are used for isolating or regulating flow .They are favoured for being lighter in weight, requiring less support and are suitable for water and gas, which makes them useful across industrial, mining and power applications.
Features:
1. Reliable sealing, convenient operation, opening and closing fast.
2. This kind of valve with no flange, which makes pipe elegantly and binding up conveniently.
3. It adopt triple offset elasticity or multiple layers hard sealing configuration, the hermetical capability can reach to reliable sealing performance.
4. The sealing of disc can be replaced by loosening the disc ring bolts, saving the cost of the valve.
5.The ends of valve inlet port and outlet port has the annular boss, which is conducive to the valve and pipe welding heat absorption and diffusion.
Technical Specification:
1) Size Range: NPS6~NPS42;DN150~DN1050
2) Pressure Range: Class 150 ~Class300;PN10 ~PN40
3)Body material：Carbon Steel, Stainless Steel & Other Materials
4) Sealing material:Stainless steel,hard alloy& Other Materials
5) Connection Type:Butt weld
6)Pressure test:GB/T13927; API598
7)Structure length: GB/T12221;API609;
8) Jointing dimension: GB/T12224; ANSI B16.25
9) Operating method:Worm gear,electric,pneumatic .
Application:
FREE-Valve’s Butt Welded Butterfly Valves are applied to use in heating system, chemical, petroleum, natural gas, refining, energy, food and the role of regulating valve.
Features:
1. Reliable sealing, convenient operation, opening and closing fast.
2. This kind of valve with no flange, which makes pipe elegantly and binding up conveniently.
3. It adopt triple offset elasticity or multiple layers hard sealing configuration, the hermetical capability can reach to reliable sealing performance.
4. The sealing of disc can be replaced by loosening the disc ring bolts, saving the cost of the valve.
5.The ends of valve inlet port and outlet port has the annular boss, which is conducive to the valve and pipe welding heat absorption and diffusion.
Technical Specification:
1) Size Range: NPS6~NPS42;DN150~DN1050
2) Pressure Range: Class 150 ~Class300;PN10 ~PN40
3)Body material：Carbon Steel, Stainless Steel & Other Materials
4) Sealing material:Stainless steel,hard alloy& Other Materials
5) Connection Type:Butt weld
6)Pressure test:GB/T13927; API598
7)Structure length: GB/T12221;API609;
8) Jointing dimension: GB/T12224; ANSI B16.25
9) Operating method:Worm gear,electric,pneumatic .
Application:
FREE-Valve’s Butt Welded Butterfly Valves are applied to use in heating system, chemical, petroleum, natural gas, refining, energy, food and the role of regulating valve.
CN, Henan
