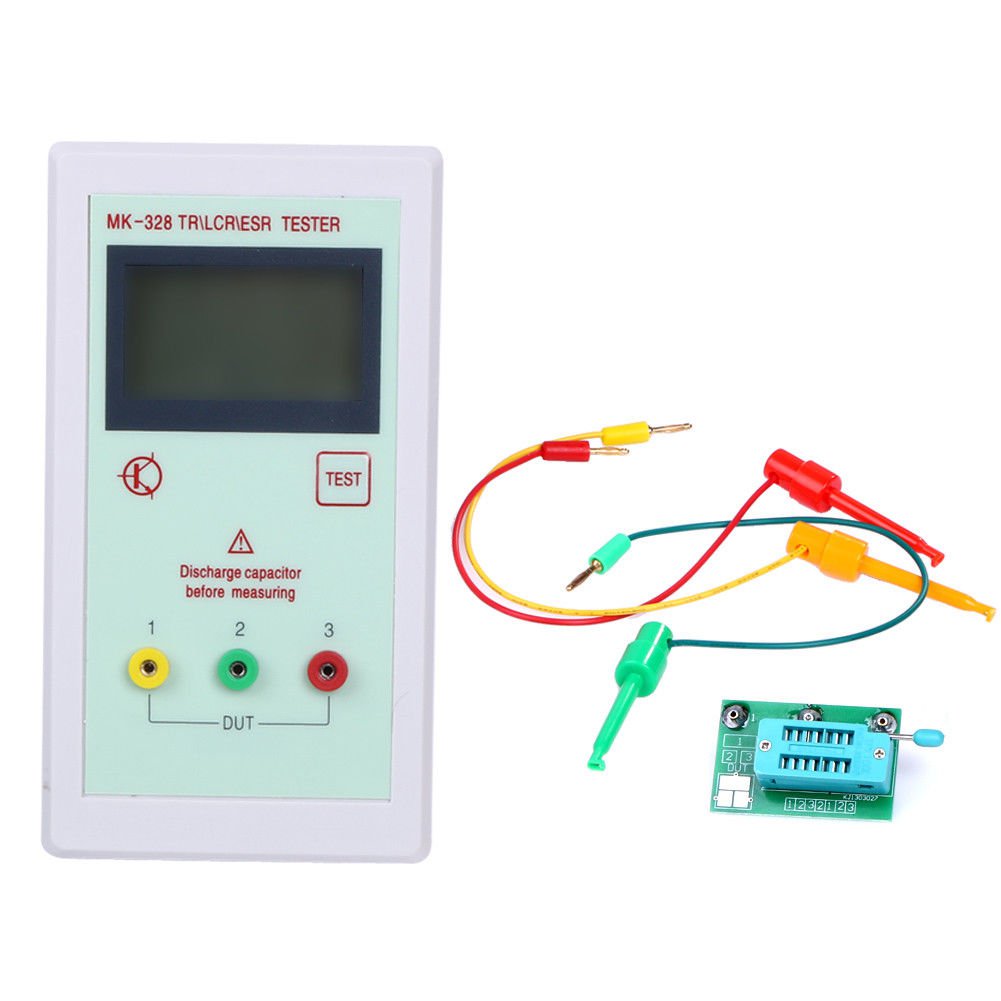

LCD Transistor Tester Diode Inductance Capacitance ESR Meter MOS/PNP/NPN L/C/R

LCD Transistor Tester Diode Inductance Capacitance ESR Meter MOS/PNP/NPN L/C/R 100% Brand New & High Quality [relateproductdetail/]Features: Operates with ATmega328 microcontrollers. Digital LCD backlight display for easy readings, can display measured data and graphics. One key operation with automatic power shutdown. Can be powered by 9V battery(not included). With shell and bracket, portable and convenient for use. Automatic detection of NPN and PNP bipolar transistors, N-Channel and P-Channel MOSFETs, JFETs, diodes, double diodes, Thyristors and Triacs. Automatic detection of pin layout of the detected part. Measure of current amplification factor and base-emitter threshold voltage of bipolar transistors. Detection of the protection diode of bipolar transistors and MOSFETs. Measuring of the Gate threshold voltage and Gate capacity value of MOSFETs. Resistance measurement resolution is 0.1 ohms, 50M ohms can be measured. Up to two diodes are shown with symbol or symbol in correct order. Specification: Display: 128*64 LCD Backlight Input Voltage: 9V Current: Approx. 20mA Power Supply: 1 * 9V Battery(NOT Included) Resistance Measurement: Max. 50MΩ Resistance Resolution: 0.1Ω Capacitance Measurement: 25pF~100mF Capacitance Resolution: 1pF Inductance Measurement: 0.01mH-20H Product Size: approx. 150*83*30mm/5.9 *3.26 * 1.18'' Product Weight: approx. 206g Package Weight: approx. 212g Note: Please allow 1-3mm differs due to manual measurement. Due to the different display and different light, the picture may not reflect the actual color of the item. Thanks for your understanding. 1 xTransistor Tester 3 x Test Cable 1 x Lock Seat If any damage during shipping when you receive the package, please feel free to contact us and better to send us the photo of damaged item, so we can check what happened and make the best solution for you. Shipping Information 1. We only ship to the confirmed address provided by PayPal. Before you pay, please make sure your address in PayPal matches the address you would like us to ship to.2. Import duties, taxes and charges are NOT included in the item price or shipping charges. These charges are the buyer's responsibility.3. The items will be ship out soon when received a verified payment (Max. 3 business days).4. This item is usually shipped from US warehouse or Asia warehouse.5. Ship worldwide, usually need 30–50 business days (to the US about 12-24business days).6. We try our best to provide you the most reliable, affordable way of shipping service. But sometimes international delivery is highly depended on the local custom and post service. If you do not receive your item on time, please contact us immediately for further assistant. We will responsible for any damage or losses incurred in the shipping process. Return & Refund Policy 1. If you are not satisfied with the item for any reason, please contact us within 5 BUSINESS DAYS after receiving the item.So we can arrange something for you such as a refund or exchange, subject to availability, after we receive the item back in good and unused condition.2. Return shipping cost is your responsibility. We reserve the right to 'NOT refund' if you leave a negative feedback BEFORE contacting us.3. If you are satisfied with our products and services, please leave your good comment in detail rating of your order. Your recognition will make us more confident to develop business and serve you better.Customers' satisfaction is the most important thing for us. Any problems could be solved through communication. Thanks For Taking Your Time and Have A Great Day!
