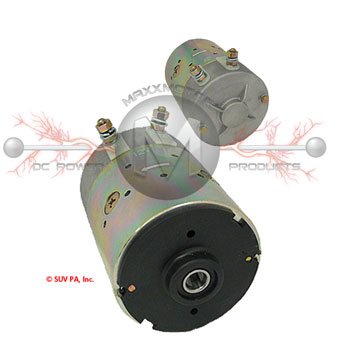

Motor for Barnes Haldex Pumps 2 Post Slotted Shaft

Motor for Barnes Haldex Pumps 2 Post Slotted Shaft

Interchange Part Number:
2200975 Barnes Haldex
Other Part Number:
2200975
Manufacturer Part Number:
2200975
Brand:
Barnes Haldes, Aftermarket
Barnes Haldex Aftermarket Snow Plow Hydraulic Unit Motor// 12V// CCW// DBB// 6 mm Shaft

Applications:
Arctic M673, Arctic M3593, Arctic M3551, Arctic M3500V and
Arctic Power Unit Series's: HD-S, HP-P, SD-S, SD-P, HDXL-P, XHD-P, HDTE-P, HDVTE-P

Part #: 51108
Rotation: CCW
Overall Length: 7.087 in.
Shaft Outside Diameter: .591 in.
Shaft Style: 6 mm slot
Terminal 1 Size: 5/16 - 24
Terminal 2 Size: 5/16 - 24
Housing Finish: Comm End is cast aluminum. Field case is plated yellow zinc (gold tone).
Weight: 15.6 pds.

Notes: Double ball bearing
Cross References:
Arctic: FP8034, HD102-S, HD90-P, HD96-P, HD96-S, HDVTE108-P, HDVTE96-P, HDXL102-P, HDXL108-P, SD84-P, SD84-S, SD90-P, SD90-S
Iskra: 1-22-722, 11-212-108, 11-212-721, AMJ4680, AMJ5667, HYD01563, IM0159
JS Barnes/Haldex: 2200975
Lester: 10759, 182-800
Monarch: 18442
Replaces part #
Arctic: FP8034, HD102-S, HD90-P, HD96-P, HD96-S, HDVTE108-P, HDVTE96-P, HDXL102-P, HDXL108-P, SD84-P, SD84-S, SD90-P, SD90-S
Iskra: 1-22-722, 11-212-108, 11-212-721, AMJ4680, AMJ5667, HYD01563, IM0159
JS Barnes/Haldex: 2200975
Lester: 10759, 182-800
Monarch: 18442
This motor will replace the following MPN's
Arctic: FP8034, HD102-S, HD90-P, HD96-P, HD96-S, HDVTE108-P, HDVTE96-P, HDXL102-P, HDXL108-P, SD84-P, SD84-S, SD90-P, SD90-S
Iskra: 1-22-722, 11-212-108, 11-212-721, AMJ4680, AMJ5667, HYD01563, IM0159
JS Barnes/Haldex: 2200975
Lester: 10759, 182-800
Monarch: 18442
