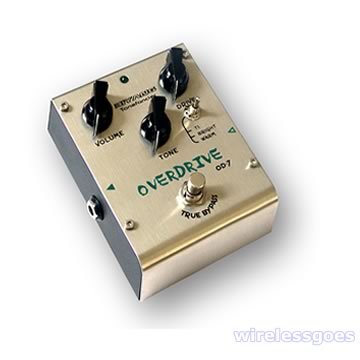

OD-7—Three modes tube tone overdrive effect pedal

Tonefancier series effects,which have used the high-class handwork effects as standard, with a high cost in adopting a lot of high-quality and well-known HI-FI audio parts and combined with classic circuits and good internal structure, have reached a very high quality level!

OD-7 took a reference from the classic circuits of Ibanez TS Series, using a lot of high quality stuffs such as the classic JRC4558 chips and German WIMA audio capacitance, High precision resistance,etc.At the sametime, OD-7 has a special 3 mode design of BIYANG. The TS mode is the classic TS-9 overdrive tone, and even more saturated.The BRIGHT mode will bring more bright,saturated, smooth distortion tone. The WARM mode is a warmly high gain tone.

Product Features:
Using classic JRC4558 chips for getting a kind of tube tone.
3 mode design
Using high quality stuffs such as German WIMA audio capacitance, High precision resistance etc...for signal transaction.
Entirely dust-proof rheostat, for long using life.
True bypass design.
Stainless metal panel and metal enclosure, luxury and durable.
Technical Description:
Connectors: Input×1,Output×1,DC9V in×1
Power supply: S-006/6F22 9Volt battery or DC9V adaptor
Current: 7mA
Input Impedance: 1MΩ
Size: 128mm(L)×94mm(W)×60mm(H)

Packing Info:
N.W/PC: 0.45kg
G.W/PC 0.5kg
