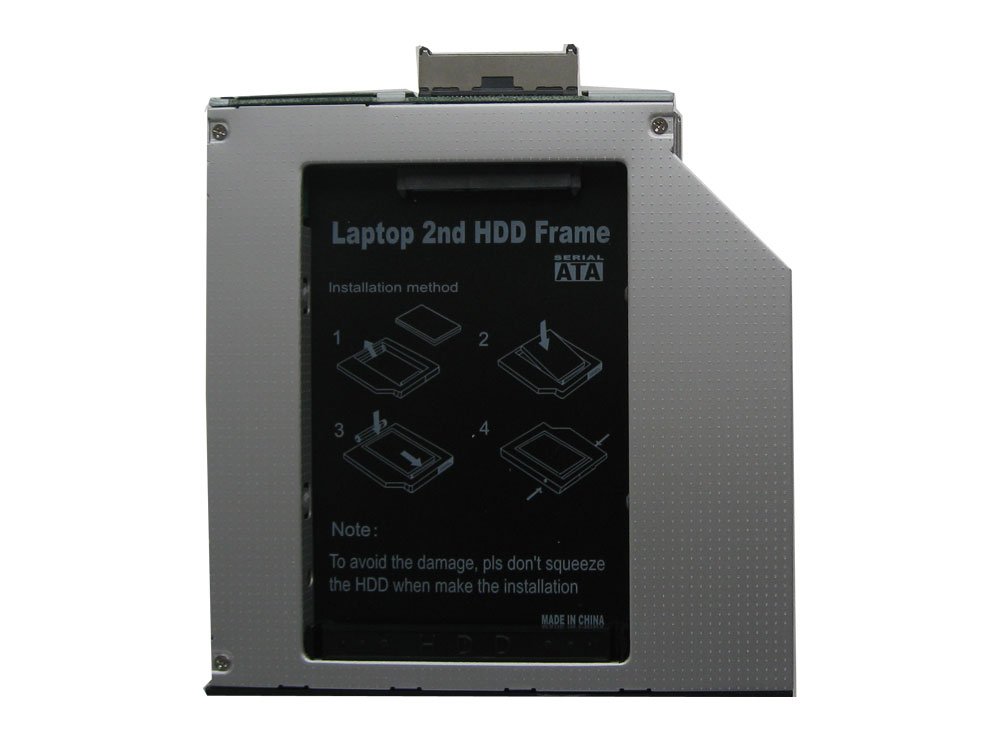

Brand New 9.5mm SATA to IDE/PATA 2nd Hard drive Universal Caddy/Bay/Adapter

Dimensions:128.0(W)mmx9.5(H)mmx129.0(D)mm
Fit models:

Sony Vaio VGN-SZ670N VGN-TZ17 VGN-S170P
SONY: VAIO S150 VAIO S150P VAIO S170 VAIO S170B VAIO S170P VAIO S240P VAIO S260 VAIO S270 VAIO S270B VAIO S270P VAIO S360 VAIO S360PR505, V505 series, Z1, TR,PCG-TR, VGN-S270 VGN-S270B VGN-S270F VGN-S270P VGN-T150PCG-V505 VGN-S260, VGN-S150, VGN-S170, VGN- S280, VGN-S360, VGN-S380...VGN-Series, S series etc
PCG-TR3A, PCG-TR3AP, PCG-TR3F, PCG-TRF, PCG-V505DC2, PCG-V505DC2K, PCG-V505DC2P, PCG-V505EC, PCG-V505ECP, PCG-V505EX, PCG-V505EXP, PCG-Z1WA, PCG-Z1WAMP1, PCG-Z1WAMP2, PCG-Z1WAP, PCG-Z1WXFP, VGN-S150, VGN-S150F, VGN-S150FP, VGN-S150P, VGN-S170, VGN-S170B, VGN-S170P, VGN-S240P, VGN-S250F, VGN-S250FP, VGN-S260, VGN-S260P, VGN-S270, VGN-S270B, VGN-S270P

2.5"HDD Interface: SATA
Laptop/ Mother Board Interface: IDE/PATA

1. Fast & Reliable connection, just as the primary HDD
2. Fully integrated into laptop, no cables/PSU/software driver needed
3. Dual boot, Support installation of 2nd operating system on the 2nd HDD and boot selection

Installation steps:
1. Unpack the hard drive, lift the hard drive dacaddy retaining latch, then screws to the hard drive.
2. Insert the hard drive into the hard drive caddy.
3. Slide the hard drive into the connector until it locks into place.
4. Lower the hard drive caddy retaining latch until it snaps closed.

Package Content:
1 X SATA 2nd HDD Caddy for SATA notebook HDD (2.5" HDD)
