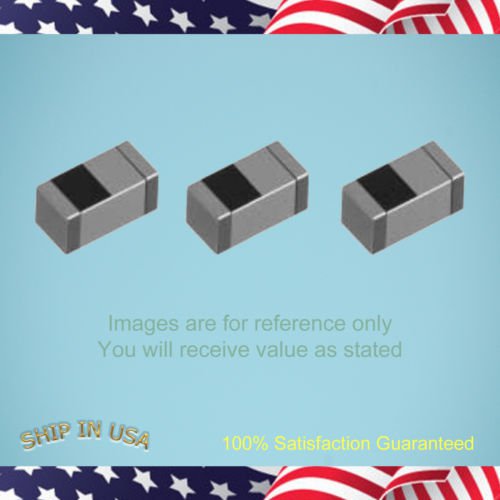

100 pcs - 0603 TOKO 2.2nH Ceramic Core Inductor ±5% LL1608-FH2N2S (E428)

CLICK HERE FOR DATA SHEETThe LL1608-FH Series is a miniature multilayer ceramic chip inductor. TOKO's proprietary laminated ceramic material provides high SRF, excellent Q, and superior reliability. The FH allows up to 3 times the current handling of standard multilayers. In addition, the Qs are 1.3-1.6 times higher. It has an industry standard 0603 footprint and comes on tape in 4,000 piece reels. It is an ideal solution for higher current needs in high frequency RF and wireless communications equipment.FEATURES• Inductance range: 1.2-100nH• Miniature size: 0603 footprint (1.6mm x 0.8mm)• Laminated ceramic allows high SRF• Q: 35 typical (at 800MHz)• High current handling, up to 1A• Temperature coefficient of inductance: +250ppm/°C• Temperature range: –40°C to +100°C• S-parameter data available upon request• Packaged on tape and reel in 4,000 piece quantity• Reflow solderable061-----------------------------------------------------------------------------------Items purchased from the US and Canada at the same time CAN NOT be combined in one shipmentPlease purchased accordingly Powered by eCRATER . List your items fast and easy and manage your active items.
