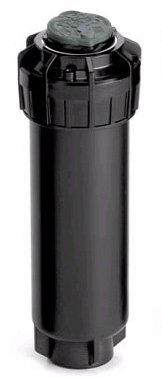

Rainbird Rotor - 5004 Plus Part Circle Series
10 available
Details
Shipping: US-Mainland: $10.00 (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
The 5000 Plus Series mid-range rotor compliments Rain Bird’s already strong Top Adjust Rotor Family, by offering greater durability, enhanced Rain Curtain™ Nozzles and the superiority of Stream Control™ Technology. This innovative new rotor has been designed with the needs of the customer in mind, while still conforming to Rain Bird’s high quality standards.
Whether used in a residential, commercial, or athletic field applications, the 5000 Plus Series promises to deliver "The Next Evolution in Rotor Performance".
Operating Range:
Precipitation rate: .20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Optimal nozzle performance at 45 psi
Flow Rate: .73 to 9.63 gpm (0.17 to 2,19 m3/h)
Specifications:
3/4" (20/27) NPT female bottom threaded inlet
Reversing full and part circle adjustment 40° – 360°
Dimensions:
Pop-up height: Shrub: 4” (10 cm); 4" (10 cm); 6" (15 cm); 12" (30 cm);
Overall body height: Shrub: 7 3/4” (19,7cm) 4": 7 3/8" (18, 5 cm); 6": 9 5/8" (24,5 cm); 12": 16 7/8" (42,9 cm)
Exposed surface diameter: 1 5/8" (4,1 cm)
