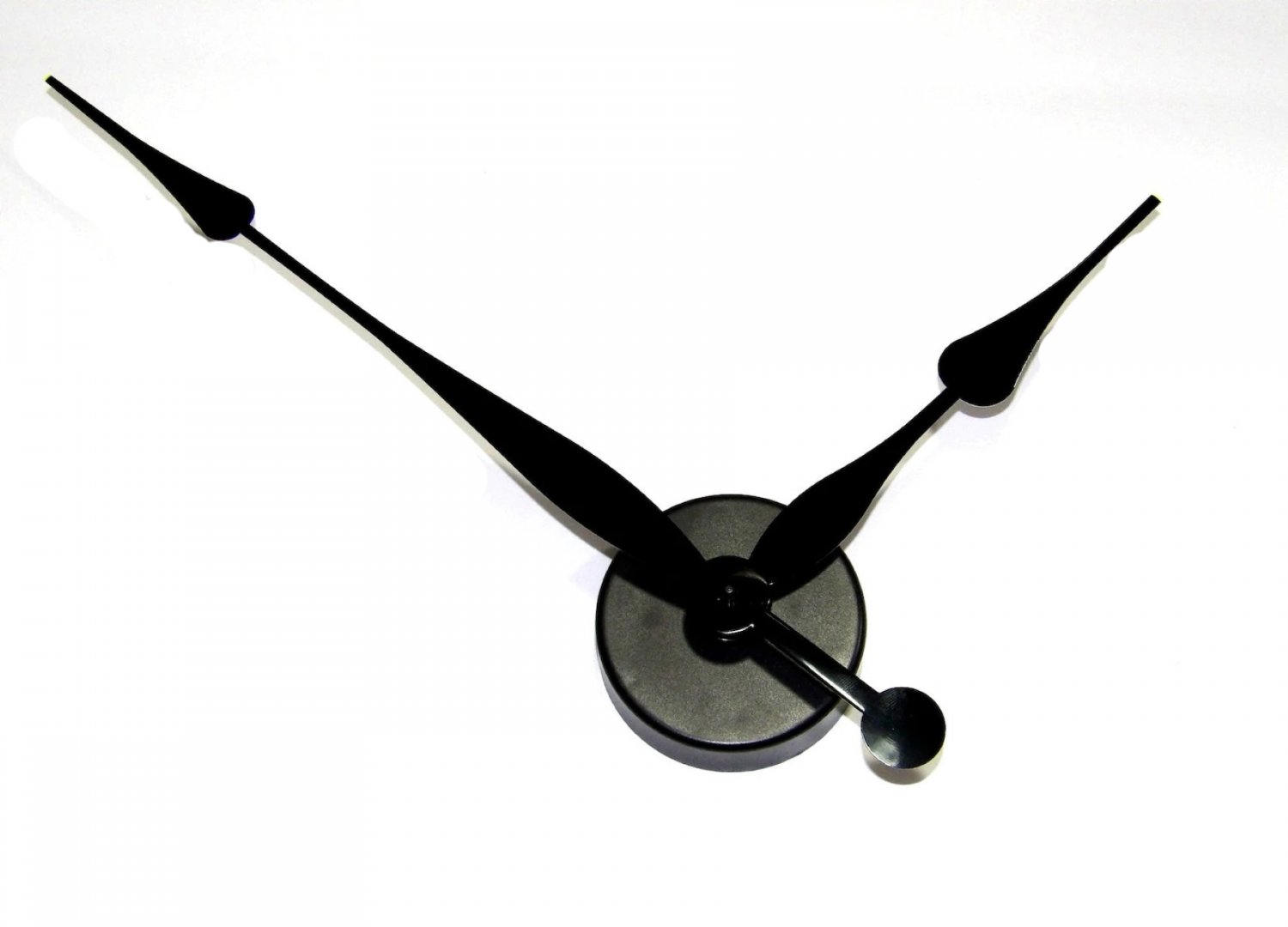

High Torque Clock Movement with 12 In. Long Hands No6 With w/Wall Mounting Hubw/Wall Mounting Hub
Now you can make that large clock with this high torque quartz movement and large 12" balanced metal hands. Includes high torque motor, 7/16" (11mm) threaded shaft and 12" black spaded balanced hands and mounting hub w/ built-in hanger for direct wall mounting of your clock. Conceals your motor for that finished look.
This is a continuous motion high torque movement, quiet sweep, with the extended shaft for extra clearance when running long balance hands. No stepping of gears, super quiet......most quiet high torque motor available. Those of you with keen hearing will greatly appreciate it's quietness.
high torque movement:
case size: 2-3/16" sq. x 5/8" thick
threaded shaft is 7/16" x 5/16" dia.
total shaft length is 13/16", including hand stem
12" balanced hands:
minute hand is 12" long, from center of mounting hole to end tip, total length is 15-1/4" end to end and counterbalanced (weight to balance hand)
hour hand is 8" from end tip to center of mounting hole, total length is 8-1/2" (end to end)
Mounting hub size: 3-3/8" in dia. x 1" deep. High impact molded plastic and may be painted any color, use a primer then your color coat
3 yr. warranty on factory defects
requires one "AA" battery (not incl.)
brass mounting hardware ( hex and kurl nuts, brass washer and rubber washer)
Securely packed
I also have 1/4" and 9/16" threaded shaft, optional, in place of the furnished 7/16" shaft. If so, you may note on checkout.
IF YOU NEED A PHOTO OF ASSEMBLY, I WILL NEED YOUR EMAIL ADDRESS IN ORDER TO SEND YOU ONE.
For larger volume and questions please email me
NOTE ON MEASURING:
Shaft length is the threaded portion that must pass thru your clock face, leaving a couple of threads to mount retaining nut.
(ex., if working with 1/4" tile as your clockface....then order the 3/8" threaded shaft)
MEASURING DIAL FOR HAND SIZE: measure from top of #12 to bottom of #6, divide in half. This will give your approx. minute hand length.
I do sell worldwide
Here's a link for making a simple DIY photo frame wall clock
http://homemakerschallenge.com/make-time-for-a-simple-diy-project-how-to-create-a-photo-wall-clock/
I do offer combined shipping for multi items to save on shipping charges in checkout
I accept personal checks, money orders and paypal !brand:clock movement, high torque, hands, big, large!]
