$239.00
Add to Cart

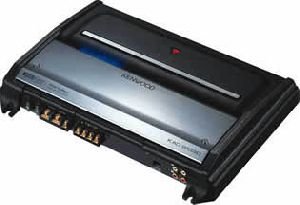

Kenwood KAC9103D
More than 10 available
Details
Shipping: US-Mainland: $15.00 (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Boasting 1800W max power, the robust KAC-9103D class D amp is illuminated and features line out RCA terminals for multiple installation.
*1800 Watts Max Power
*Class D Amplifier Circuit
*Cast Aluminum Heat Sink
*Detachable Aluminum Dress Plate
*1-Ohm Stable
*Built-in Cooling Fan
*Optional Remote Bass Boost Control
*Built-in Variable Low-Pass Filter (50Hz-200Hz) 24dB/ Oct
*Built-in Infrasonic Filter for Tighter Bass Response
*Dimensions in inches: W:14.9/D:11.2/H:2.5
RMS Power Output (Watts x Channels) 500 x 1
Peak Power Output (Watts x Channels) 1800 x 1
Power at 2 Ohms (Watts x Channels) 900 x 1
Bridged Power (Watts x Channels) N/A
Minimum Impedance Bridged N/A
Minimum Impedance Unbridged 1
Frequency Response 20-200 Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 100 dB
Input Voltage 14.4v
Features
Amplifier Class D
Low-Pass Crossover Frequency 50-200 Hz
Low-Pass Slope (dB/octave) -24 dB
High-Pass Crossover Frequency N/A
High-Pass Slope (dB/octave) 0
Bass Boost 0-18 dB
Bass Boost Frequency 40 Hz
Fan Cooled Yes
Fuse Rating 30 x 2
Speaker Level Inputs Yes
Preamp Outputs 1 pair
LED Power Indicator Yes
Width (inches) 11-1/2
Height (inches) 2-9/16
Depth (inches) 14-7/8
Parts Warranty 1 Year
Labor Warranty 1 Year
*1800 Watts Max Power
*Class D Amplifier Circuit
*Cast Aluminum Heat Sink
*Detachable Aluminum Dress Plate
*1-Ohm Stable
*Built-in Cooling Fan
*Optional Remote Bass Boost Control
*Built-in Variable Low-Pass Filter (50Hz-200Hz) 24dB/ Oct
*Built-in Infrasonic Filter for Tighter Bass Response
*Dimensions in inches: W:14.9/D:11.2/H:2.5
RMS Power Output (Watts x Channels) 500 x 1
Peak Power Output (Watts x Channels) 1800 x 1
Power at 2 Ohms (Watts x Channels) 900 x 1
Bridged Power (Watts x Channels) N/A
Minimum Impedance Bridged N/A
Minimum Impedance Unbridged 1
Frequency Response 20-200 Hz
THD at Rated RMS Power 1%
Signal to Noise Ratio 100 dB
Input Voltage 14.4v
Features
Amplifier Class D
Low-Pass Crossover Frequency 50-200 Hz
Low-Pass Slope (dB/octave) -24 dB
High-Pass Crossover Frequency N/A
High-Pass Slope (dB/octave) 0
Bass Boost 0-18 dB
Bass Boost Frequency 40 Hz
Fan Cooled Yes
Fuse Rating 30 x 2
Speaker Level Inputs Yes
Preamp Outputs 1 pair
LED Power Indicator Yes
Width (inches) 11-1/2
Height (inches) 2-9/16
Depth (inches) 14-7/8
Parts Warranty 1 Year
Labor Warranty 1 Year
