EZ-1.3MP 720p OUTDOOR IR - IP Camera ONVIF 3.6mm Fixed Lens
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

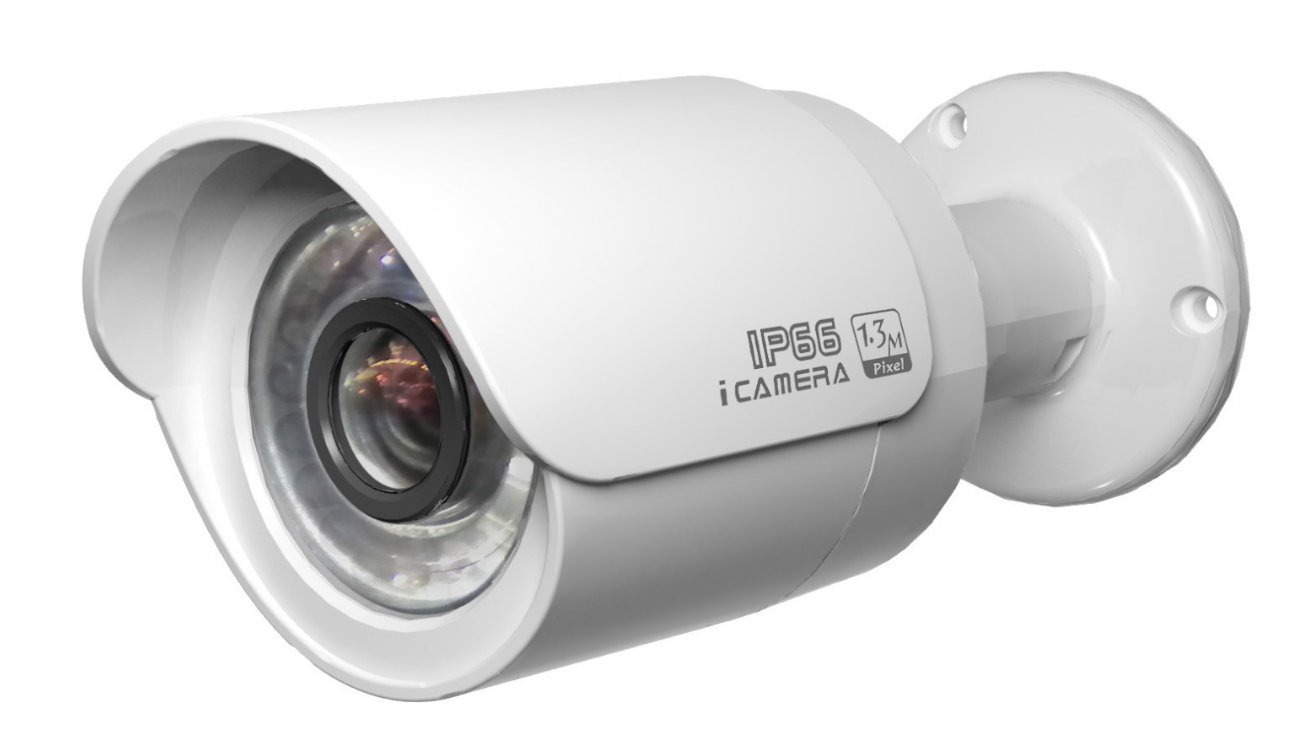

1.3Megapixel HD Network Mini IR-Bullet Camera ONVIF Ready
1.3 Megapixel Aptina CMOS sensor capable of HD Resolution up to 1.3mp (1280×960).
> 1/3” 1.3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max [email protected](1280×960)&25/30fps@720P(1280×720)
> Day/Night(ICR), 2DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6 mm fixed Lens (6.0mm, 8mm optional)
> Max. IR LEDs length 20m
> IP66, PoE
Camera
Image Sensor 1/3” 1.3Megapixel Aptina CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s Auto/Manual, 1/4~1/10000s
Min. Illumination Color: 0. 1LUX/F1.2, B/W: 0.005LUX/F1.2; 0LUX/F1.2(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6 mm
Max Aperture F1.8
Angle of View H: 46°(70°/35°)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate Main Stream 1.3M(1~15fps)/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Ver. 2.0
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V, PoE(802.3af)
Power Consumption
1.3 Megapixel Aptina CMOS sensor capable of HD Resolution up to 1.3mp (1280×960).
> 1/3” 1.3Megapixel progressive scan Aptina CMOS
> H.264 & MJPEG dual-stream encoding
> Max [email protected](1280×960)&25/30fps@720P(1280×720)
> Day/Night(ICR), 2DNR, AWB, AGC, BLC
> Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
> 3.6 mm fixed Lens (6.0mm, 8mm optional)
> Max. IR LEDs length 20m
> IP66, PoE
Camera
Image Sensor 1/3” 1.3Megapixel Aptina CMOS
Effective Pixels 1280(H)x960(V)
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/10000s Auto/Manual, 1/4~1/10000s
Min. Illumination Color: 0. 1LUX/F1.2, B/W: 0.005LUX/F1.2; 0LUX/F1.2(IR on)
S/N Ratio >50dB
Camera Features
Max. IR LEDs Length 20m
Day/Night Auto(ICR) / Color / B/W
Backlight Compensation BLC
White Balance Auto
Gain Control Auto/Manual
Noise Reduction 2D
Privacy Masking Up to 4 areas
Lens
Focal Length 3.6 mm
Max Aperture F1.8
Angle of View H: 46°(70°/35°)
Mount Type Board-in Type
Video
Compression H.264 / MJPEG
Resolution 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) 1.3M(1280×960) / 720P(1280×720) / D1(704×480) / CIF(352×240)
Frame Rate Main Stream 1.3M(1~15fps)/720P(1 ~ 25/30fps)
Sub Stream D1/CIF(1 ~ 25/30fps)
Bit Rate H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps
Network
Ethernet RJ-45 (10/100Base-T)
Protocol IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
ONVIF ONVIF Ver. 2.0
Max. User Access 10 users
Smart Phone iPhone, iPad, Android, Windows Phone
General
Power Supply DC12V, PoE(802.3af)
Power Consumption
