EZ-Vivotek 3MP CMOS 1.27mm Fisheye H264 Vandal-proof IK10 IP66
10 available
Details
Shipping: US-Mainland: free (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.

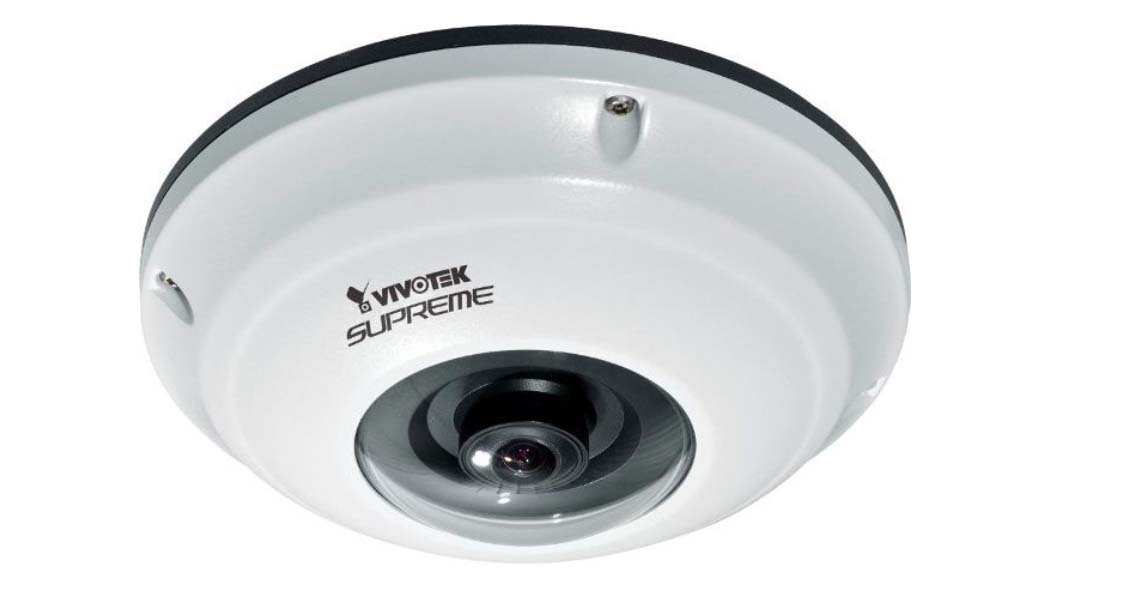

Vivotek 3MP CMOS 1.27mm Fisheye H264 Vandal-proof IK10 IP66
VIVOTEK FE8171V is the first fisheye fixed dome network camera from VIVOTEK, featuring detailed 3.1MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 8X wider field of view than a standard VGA camera, significantly reducing the need for multiple camera installations. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices, and much more.
The FE8171V offers various display layouts, including original surround view, panoramic views, and regional views for various mounting applications. With the latest cutting-edge image processing, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).
As with all VIVOTEK true day/night cameras, the FE8171V features a removable IR-cut filter, maintaining clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandal-proof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance, and iPad applications, the FE8171V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
Features:
•3.1-megapixel CMOS Sensor
•1.27 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
•Removable IR-cut Filter for Day & Night Function
•EN50155 Compliance for Professional Mobile Surveillance
•Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
•Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
•Built-in 802.3af Compliant PoE
•Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
* The ST7501 version for FE8171 is V1.6 or above.
Specifications:
Brand
Vivotek
Model
FE8171V
Image Sensor
1/2" CMOS
Resolution
2048x1536 Resolution
Minimum Illumination
1.17 Lux @ F2.8 / 0.2 Lux @ F2.8 ( B/W )
Shutter Speed
1/5 ~ 1/32,000 sec
White Balance
Auto / Manual
Lens
f=1.27 mm F 2.8
Audio
Built-in microphone
Video
Compression: H.264, MPEG-4 & MJPEG
Megapixel
3.1 MP
Network
10/100 Mbps Ethernet, RJ-45
Network Protocol
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Local Storage
MicroSD/SDHC card slot
Operating Temperature
-25°C ~ 50°C (-13°F ~ 122°F)
POE
802.3af compliant Power-over-Ethernet
Power Source
12V DC
Power Consumption
Max. 3.84 W
Dimension
6.8" x 4.5"
Weight
2.9lbs
Warranty
36 Months
Dimensions
Ø: 145mm x 52 mm
VIVOTEK FE8171V is the first fisheye fixed dome network camera from VIVOTEK, featuring detailed 3.1MP-resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, this camera is able to provide an 8X wider field of view than a standard VGA camera, significantly reducing the need for multiple camera installations. It is extremely suitable for monitoring open areas such as airports, shopping malls, parking lots, retail stores, offices, and much more.
The FE8171V offers various display layouts, including original surround view, panoramic views, and regional views for various mounting applications. With the latest cutting-edge image processing, hemispherical images captured from the fisheye camera can be converted into conventional rectilinear projection for viewing and analysis. In addition, in the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to easily zoom in and focus on a region of interest (ROI).
As with all VIVOTEK true day/night cameras, the FE8171V features a removable IR-cut filter, maintaining clear images 24 hours a day. Its IP66-rated housing is designed to help the camera body withstand rain and dust and ensures operation under a multitude of harsh weather conditions. Additionally, the vandal-proof IK10-rated housing effectively provides robust protection from vandalism. Together with 802.3af compliant PoE, microSD/SDHC/SDXC card slot for on-board storage, EN50155 mobile surveillance, and iPad applications, the FE8171V is indisputably the top choice for constructing a robust surveillance system with the greatest coverage possible.
Features:
•3.1-megapixel CMOS Sensor
•1.27 mm Fisheye Lens for 180° Panoramic View and 360° Surround View
•Removable IR-cut Filter for Day & Night Function
•EN50155 Compliance for Professional Mobile Surveillance
•Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
•Vandal-proof IK10-rated and Weather-proof IP66-rated Housing
•Built-in 802.3af Compliant PoE
•Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
* The ST7501 version for FE8171 is V1.6 or above.
Specifications:
Brand
Vivotek
Model
FE8171V
Image Sensor
1/2" CMOS
Resolution
2048x1536 Resolution
Minimum Illumination
1.17 Lux @ F2.8 / 0.2 Lux @ F2.8 ( B/W )
Shutter Speed
1/5 ~ 1/32,000 sec
White Balance
Auto / Manual
Lens
f=1.27 mm F 2.8
Audio
Built-in microphone
Video
Compression: H.264, MPEG-4 & MJPEG
Megapixel
3.1 MP
Network
10/100 Mbps Ethernet, RJ-45
Network Protocol
IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP and 802.1X
Local Storage
MicroSD/SDHC card slot
Operating Temperature
-25°C ~ 50°C (-13°F ~ 122°F)
POE
802.3af compliant Power-over-Ethernet
Power Source
12V DC
Power Consumption
Max. 3.84 W
Dimension
6.8" x 4.5"
Weight
2.9lbs
Warranty
36 Months
Dimensions
Ø: 145mm x 52 mm
