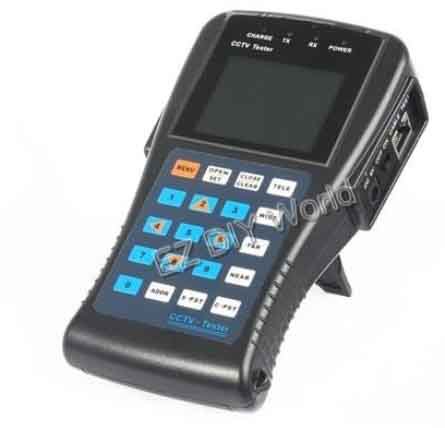

EZ-All In One Multi Functional CCTV Tester monitor

New Multi functional CCTV Tester MT200 : Used by installers and field technicians, handheld MT200 can test video, RS485 data, and status of UTP cables connection. Portable solution, able to withstand harsh environments, supports RS232, RS422 simplex, RS485, and multi-protocol formats. It also tests RS485 data sent from controlling device and displays hexadecimal data content on integral LCD screen. Powered via included adapter or internal battery, tester can be used while being charged and is operated via OSD.



Video test function, high resolution LCD screen
UTP cable test function,
Support more that 20 kinds of RS485 protocol
Keyboard with number buttons, easier operation
Low consumption, battery power status



Built in OSD Yes
LED Indicator Yes
Internet Line Test Yes
Protocol Pelco D, P; Samsung, Panasonic or customized
Rechargeable battery Yes (2) Included
PTZ Control Yes
Cable Tester Yes
Communication Port RS232/RS485
Video Input /Output Selectable
Communication Selectable
Baud Rate Selectable
LCD 2.5 Inch LCD
Video Format NTSC / PAL AUTO Switch
Interior Power (10%) DC 3.6 1200MAH
Exterior Power (10%) DC9V 2amp
Dimensions (mm)** 156(L) x93(H) X51 (W)
