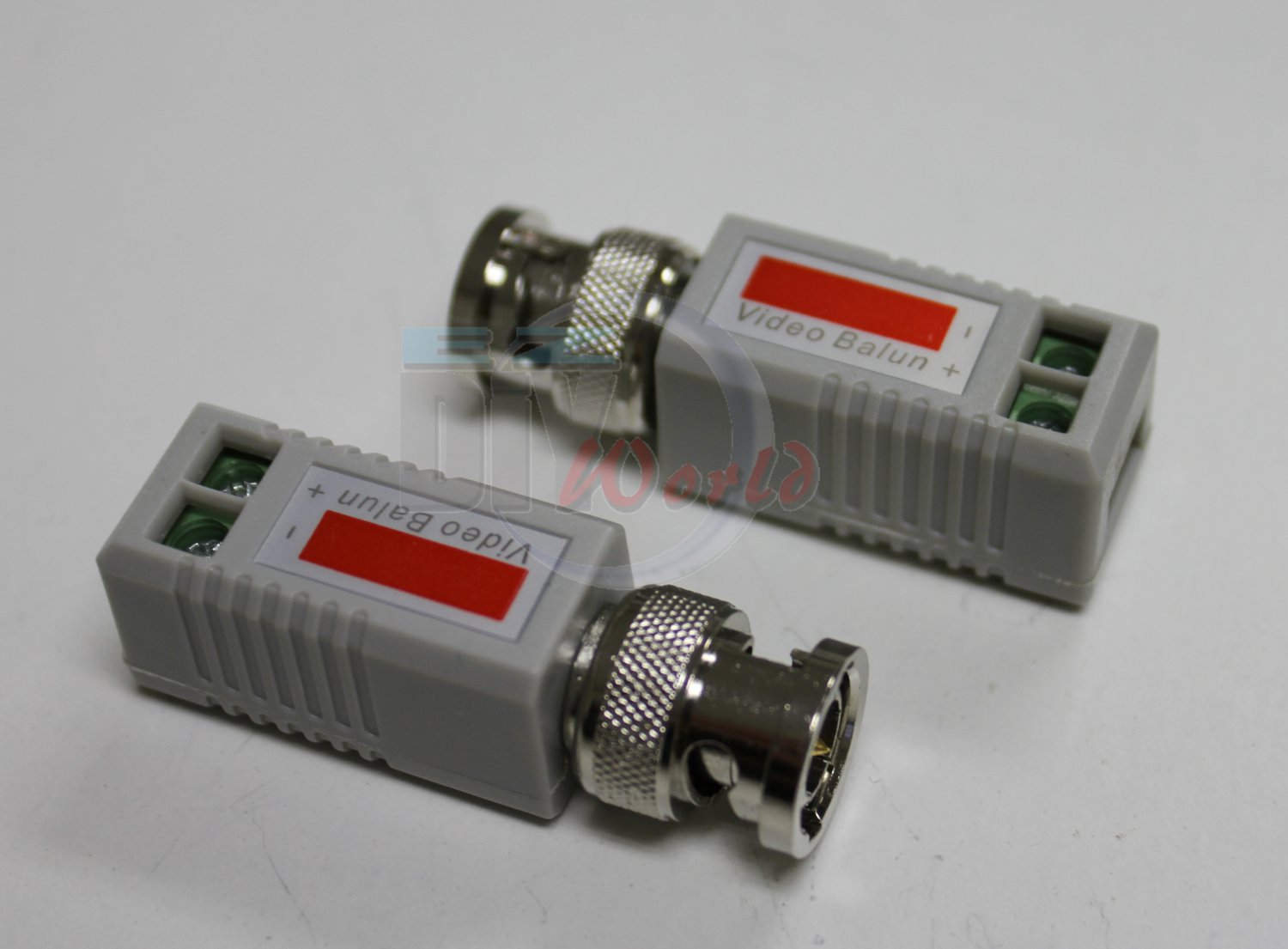

EZ-1 Port Passive CCTV Camera Video Balun Transceiver
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Sales Tax: check
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
1 CH PASSIVE TWISTED-PAIR VIDEO TRANSCEIVERS 600M
•Product Overview
•1 Channel Passive Video Transceiver
•Video Transmission via UTP CAT5 Cable
•Support all video device, such as camera, monitor,
DVR card and recorder etc
•Compatible with LAN system, using pin 4,5
or pin 7,8.
•Lower Cost, Easy Installation
•Product Specifications
•No Power Required
•Transmission Distance: 600M (2000')
•DC Loop Resistance: 18 ohms per 100M
•Loss Ratio: >2dB
•Rejection Ratio: 40dB
•Input Impedance: 75 ohms
•Output Impedance: 100 ohms
•Frequency Response: DC-6MHz
•Package Includes
•(2) Video Balun Passive Twisted-Pair Transceivers
