$38.95
Add to Cart
Water Pump Kit for Johnson Evinrude V4 V6 V8 for Some 85 to 235 HP Replaces 5001594 5001595 (TM3392)
Water Pump Kit with Housing for Johnson Evinrude V6 or V8
Replaces part number 5001594 (old 434421)
This Kit can also be used to replace part number 5001595. However, if you have a bleed hole in your old housing, you will have to drill a bleed hole in this housing of the same diameter and in the same location. Also, if you have guide tube extensions in your old pump, you will need to re-use those same tubes with this kit. ** We do also carry the kit that contains the housing with spray hole and the long guide tube -- search for TM3315 **
Using this kit for 5001595 applications will expand the list of applicable models below so, if you do not know which kit you need, please send us an eBay message with your model number and we will be happy to help.
Fits multiple models for 85-235 HP.

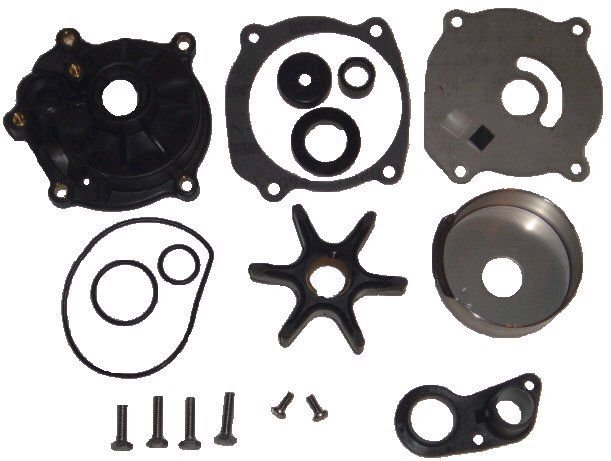

Kit includes everything shown in picture.
It is designed for the following applications:
85 HP 1979-1995,
90 HP 1979-UP,
100 HP 1979-UP,
100 Commercial (except Chrome Pumps) 1984-UP,
115 HP 1979-UP,
125 ESX 25" S Suffix (not F) 1993-1994,
125 ESX 25" 1994-1995,
140 HP 1979-UP,
150 HP 1979-UP,
150 HP 20" 1993-UP,
200 HP Commerical 1990,
225 HP 20" 1993-UP,
235 HP 1979-UP,
V4 Crossflow 20" & 25" 1993-UP,
V4 Looper 20" 1993-UP,
V4, V6, V8 (except 25"-30" V6,V8 in 1993-94) 1982-1994,
V6 - V8 20" 1993-UP,
Sea Drives 1979-UP.
Replaces part number 5001594 (old 434421)
This Kit can also be used to replace part number 5001595. However, if you have a bleed hole in your old housing, you will have to drill a bleed hole in this housing of the same diameter and in the same location. Also, if you have guide tube extensions in your old pump, you will need to re-use those same tubes with this kit. ** We do also carry the kit that contains the housing with spray hole and the long guide tube -- search for TM3315 **
Using this kit for 5001595 applications will expand the list of applicable models below so, if you do not know which kit you need, please send us an eBay message with your model number and we will be happy to help.
Fits multiple models for 85-235 HP.
Kit includes everything shown in picture.
It is designed for the following applications:
85 HP 1979-1995,
90 HP 1979-UP,
100 HP 1979-UP,
100 Commercial (except Chrome Pumps) 1984-UP,
115 HP 1979-UP,
125 ESX 25" S Suffix (not F) 1993-1994,
125 ESX 25" 1994-1995,
140 HP 1979-UP,
150 HP 1979-UP,
150 HP 20" 1993-UP,
200 HP Commerical 1990,
225 HP 20" 1993-UP,
235 HP 1979-UP,
V4 Crossflow 20" & 25" 1993-UP,
V4 Looper 20" 1993-UP,
V4, V6, V8 (except 25"-30" V6,V8 in 1993-94) 1982-1994,
V6 - V8 20" 1993-UP,
Sea Drives 1979-UP.
