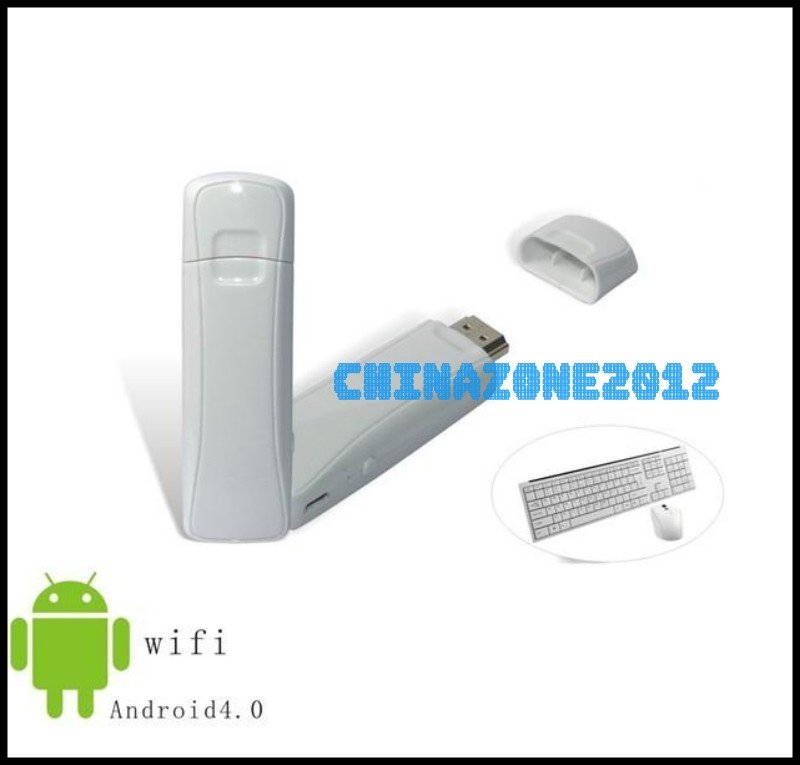

MK8020 Google Android4.0 MINI PC TV BOX CORTEX-A5 TV Cloud Stick dual core Telechips

Type CORTEX-A5 (45nm CMOS)
Company Telechips
Main Frequency 1.0 Ghz (MAX)
Core Type TCC8925
Architecture HD video decoder(1080P@60Fps)
HD Video encoder(1080P@30Fps)
Five Layers for Display and Graphic Process Unit
PMU (Power Manage Unit)
HDMI 1.4
Standard HDMI Interface
Others: 3D GPU inside(mail 400)
Memory & Flash & POWER
Memory DDR3: 512M(16bit)
Nand Flash Internal 4G/8G/16G Nand Flash
Power consumption Main Unit + 2.4G sender(Mouse)≤700mA@5V
Wireless Network And Other
WiFI IEEE 802.11 b/g/n(AR6103)
WIFI Mobile DISPLAY Support wifi connect with Mobile display
DC-IN USE Micro USB
USB Socket Micro USB(OTG)&USB-4P (HOST)
2.4G wireless keyboard mouse Support
2.4G fly mouse Support
DLNA DIGITAL LIVING NETWORK ALLIANCE
WPS Wireless Provisioning Services
Size & Weight
Length 82mm
Width 26.5mm
Height 13.8mm(Max)
Weight(g) About 30g



Google TV Cloud Stick Software Description

Operation System
OS Android4.0(Later)
Linux Kernel 2.6.35.7+
Language Support Multi Languages
Input Method Android Keyboard
Input Method2 2.4G Mouse
Standard Applications
Audio Music Player(MP3/WMA/WAV/OGG/AAC/FLAC/3GP…)
Video Movie Player(MPEG2/4/AVI/WMV/MKV/MOV/RM/RMVB…)
Picture Viewer Gallery
Web Browser Browser
Game of Android APK of Android
Pre-Load Applications
Adobe Flash Player V11.1 or Later
HTML5 Support
Files Manager R.E. Manager
Online stream playback Youtube & YOUKU
TXT editor IREAD
