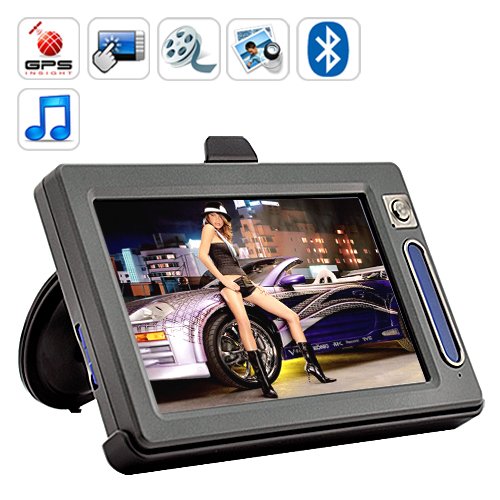

BattleStar 7 Inch Touchscreen GPS Navigator with Bluetooth like Magellan, Garmin, TomTom

The BattleStar, a new 7 Inch Touchscreen GPS Navigator with Bluetooth and FM Transmitter. This is the mother of all GPS Navigators, with robust GPS functionality, multimedia functions, AV input for your car rearview camera, and a 7 inch display so you can see it all in full clarity.

Drive in comfort with your eyes at ease! No longer will you have to squint your eyes in order to read the display on your GPS unit while driving. The BattleStar GPS Navigator has a comfortably large 7 inch display and features and features an easy to use touchscreen icon driven interface to give you the perfect user experience. This GPS Navigator also includes support for rear view camera input along with automatic AV switch. This function is extremely useful as it helps you reverse and parallel park your car with comfort and ease because the GPS Navigator will automatically change to AV Rearview Camera view when you are reversing your car!

The BattleStar 7 Inch Touchscreen GPS Navigator with Bluetooth is very versatile. It has Bluetooth functionality which allows for simple cell phone pairing, and it also has an M transmitter which enables sound output to your car speakers. Talk to your caller handsfree through the built-in MIC and listen to them on your car speakers - wow, won't that make driving to work easy!? In addition, you can even be viewing GPS maps while you have music playing in the background because this unit has DUAL ZONE functionality, allowing it to run media in the background while the GPS software is running.

This portable navigator supports all of today's popular GPS software which include functions like voice directions, automatic re-routing (if you take a wrong turn), 3D mapping, night mode, and more. Use this GPS device to reach your destination on-time, every time!

The BattleStar 7 Inch Touchscreen GPS Navigator with Bluetooth is a premium high performance GPS Navigator that has one of the most user friendly menu navigation systems around. The benefit to you - easy menu operation while driving means a safer ride. The Battlestar is a great product for either the resale market, OEM market, or personal/company use. It is available to you at the lowest price on the internet! So don't delay, click "Add to Cart" now and we'll express ship your order to you within 24-hours.

At a Glance...
"Battlestar" GPS Navigator
Bluetooth
FM Transmitter
7 inch Touchscreen
Convenient AV input
MP3 Music & MP4 Video Player
Bonus 2GB SD Card Included - FREE!
AV Setup for rear view camera
DUAL ZONE - Listen to music while running GPS Software
Sync to your PC with Windows Mobile Device Center


Manufacturer Specifications

Primary Function: GPS Navigator with Bluetooth and FM Transmitter
Display: 7 Inch Touchscreen TFT LCD
Screen Resolution: 480 x 234
Main System Information
- Chip Type: SAMSUNG S3C2440A-40
- Frequency: 400MHz
- SDRAM: 64 MB
- Flash Memory: 128 MB
- External Memory: Up to 4GB SD Card (Including 2GB SD Card inside For FREE!)
- Operating System: Microsoft Windows CE 4.2 (compatible with all major GPS software packages)
Supported Digital File Formats
- Video: MP4, AVI, 3GP, MOV, WMV, ASF, DIVX , MPEG
- Audio: MP3, MIDI, WMA, WAV
- Image: PNG, JPEG, BMP, GIF
- Ebook: TXT
Primary Menu Icons: Navigation, Music, Movie, E-Book, Photo, Bluetooth, AV Switch, Settings
FM Transmitter: Yes, 88.0 MHz - 92.0 MHz (Worldwide)
Bluetooth: Yes
- Pair with phone - then use touchscreen interface
- Dialing Keypad
- Contact Book
- Dial call
- Answer call
- Volume control
- Auto answer
GPS Information
- Receiver Module: SiRF Star III
- Interface: Touch Screen
- GUI Interface: YES - 3D type
- Maps: via SD card
- Voice: YES
- Frequency: 1.57542GHZ
- C/A Code: 1.023 MHZ chip rate
- Signal Channels: 20
- Tracking Sensitivity: -159dBm
- Position Sensitivity: 10m, 2D RMS; 5m, 2D RMS, WAAS enable
- Speed Rate: 0.1m/s
- Data Update Rate: 1Hz
- Recapture Time: 0.1s on Average
- Hot Startup Time: Average 1s
- Warm Startup Time: 38 seconds on average
- Cold Startup Time: 42 seconds on average
- Maximum Position Altitude: 18,000 m
- Maximum Speed Rate: 515 cm/s
- Built-in Antenna Type: Built-in active ceramic antenna
- Built-in Antenna Voltage: 3.3V +/- 5%
- Built-in Antenna Current: 15mA
- Built-in Antenna Gain: 27dB
Environmental Parameters
- Operating Temperature: -10 to +60 Degrees Celsius
- Storage Temperature: -40 to +70 Degrees Celsius
- Operating Humidity: 45% to 80% RH
- Storage Humidity: 30% to 90% RH
On Board Buttons/Slots/Indicators
- MIC
- SD Card Slot
- Mini USB
- AV IN
- Stereo Speakers x2
- 3.5 mm Audio Jack (for earphones/headphones)
- Pen Stylus
- SD Card Slot
AV Select: Contrast, Normal, Mirror, Auto Back Car
AV Settings: Aspect Ratio - 16:9, 4:3, Brightness, Contrast, Saturation, HUE Saturation, Settings
Menu Languages: English, Simplified Chinese, Traditional Chinese, German, French, Netherlands, Hungarian, Czech, Danish, Norwegian, Swedish, Italian, Finnish, Greek, Russian, Polish, Portuguese, Lithuanian, Latvian (Note: Actual GPS voice and display languages depends on the GPS software you are using)
Battery: Rechargeable Li-ion 1100mAh
Battery Life
- 100-240 minutes active (depending on function being used)
- 72-96 hours standby
Power Supply
- Mains power adapter
- Car cigarette lighter adapter
- Internal li-ion rechargeable battery
- USB cable
Dimensions: L:197 x W:114 x D:35 (mm)
Certification: CE, FCC, RoHs
Manufacturers Ref: TJD7A2OU7KGH

Product Notes

Loading files into the unit's internal memory is achieved through USB and Microsoft Activesync. Activesync is available through Microsoft directly.
Touchscreen can be used with stylus or your finger
The handheld GPS unit MUST be connected to the car charger unit in order for the FM transmitter to work
Before you head out, load it up with all your favorite music, video, and picture files. Listen to your audio files through the built-in speakers, or through your car speakers
Special GPS Note: This model is compatible with most brands of GPS software, such as TomTom, iGO, Route66 etc. - however hardware specific software such as Garmin may not run on this unit. As the wholesaler, Chinavasion provides the GPS-enabled hardware only, not the software. Chinavasion provides no warranty or customer support regarding GPS software. Chinavasion cannot provide downloads / links / advice regarding GPS software. Any software installation you undertake should be performed or supervised by a professional.

Package Contents for Model CVOY-CS35

"Battlestar" 7 Inch GPS Navigator with Bluetooth
Mounting Bracket
Mounting Hardware
Car Charger Adapter
USB Cable
RCA Cable
Power Adapter (100-240v)
User Manual - English
