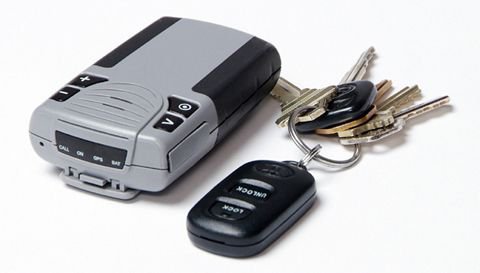

The Iberian live tracker is the most complete and affordable covert personal GPS tracking device available today. The Iberian combines accurate GPS monitoring and reporting with quad-mode capabilities resulting in a product ideal for asset management, personal safety or covert GPS tracking.

The Iberian live tracker provides tracking, reporting and monitoring for up to 2 weeks, capable of updates every 5 seconds!

The Iberian's quad-mode allows the device to operate from any location in the world. The Iberian tracker is equipped with GPS assist and works inside buildings and parking garages.

The Iberian live tracker offers a solution for GPS service providers and systems integrators interested in providing worldwide vehicle tracking, security and recovery services to their clients.

One-way emergency listening and two-way voice options makes the Iberian is an effective personal safety device.

Technical Specifications

Physical Information



L x W x H - 100.33 x 58.92 x 25.4mm
Housing - Polycarbonate
Weight - 136g
Quad Band Operation



Supported bands - 850/900/1800/1900Mhz
GSM Functionality



Voice: FR, EFR, HR & AMR
CS Data: Asynchronous, transparent and non-transparent up to 9.6KB
GSM SMS: PDU, MO/MT Cell Broadcast
Application Interface



Host Protocols: AT Commands, UDP/API, CMUX
Internal Protocols: PPP, UDP/API, UDP/PAD, CMUX, TCP/PAD
API Control/Status: AT or UDP
Key Features:


Real-Time-Clock (RTC)
Event Engine Scriptable
Friends IP, Wake-Up & Keep ALive, Auto Activate
Special Features



Motion Sensor
Vibrating Alert
GPS/A-GPS Functionality



Autonomous and "Enhanced" Autonomous
GPS operations w/ optional Multi-day ephemeris service
Tracking up to 14 satellites
3GPP A-GPS standards compliant
Supported Protocols:

Secure User Plane Location (SUPL)
NMEA

Time to First Fix (Cold Start)

30 sec @ 5m avg.
1 Hz Navigation Fixes
SIM Card/Interface/IO



Internal 3V SIM accessed via battery compartment
Mini USB jack for power and local data access
Vehicle power adapter (optional)
2.5mm headset jack
Environment



Operating: -20C to 60C
Storage: -40C to 85C
Humidity: Up to 95% non-condensing
Power Supply



Rechargeable Lithium-Ion Battery
