Features:
Dual function for access control and time & attendance.
Support online hardware controlling.
Support max. 255 network sets.
Built-in with a card reader & W26 interfaces.
Adopt RS485 as the network communication mode.
Support 2500 card holders.
Support card password, card plus password & password plus card.
Can record and store data accurately.
English & Chinese language LCD Display.
User Name & Number display on LCD.
With backlight, bell, alarm and massage functions.
Can enter short public and personal messages.
With 10 pcs of Key fobs.
Anti-interference ability and power failure resistance.
Sensitively and response quickly.
Suitable for house, offices, factories, hotels, and schools, etc.

Specifications:
Working voltage: AC/DC 8-25V
Memory: 2500 standard users
Total readings: 25000
Data storage: 4M
Communication mode: RS485
Transmission rate: 9600bps
Wiegand ports: 2
Relay outputs: 2
State inputs: 4
Card type: EM or Mifare compatible
Induction distance: 4 - 15cm
Networking capacity: 255 sets
Data saving: >10 years
Door open options (admin user selectable): Card (Key Tag) & Password/ Card (Key Tag) Only/Password Only
Item dimension: 12*8.8*1.8cm
Item weight: 270g
Package weight: 320g

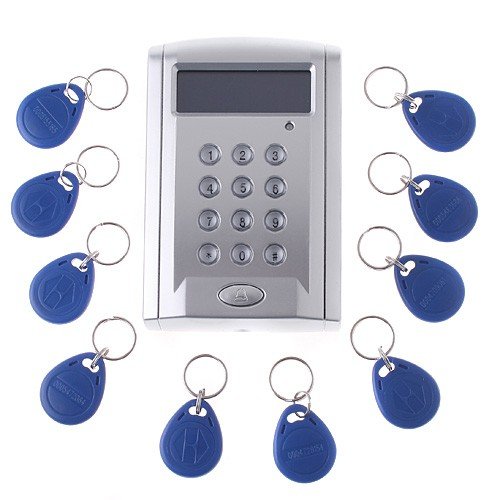

Package include:
1 * Door Control System
10 * RFID Keyfobs
1 * User Manual
