$15,500.00
Add to Cart

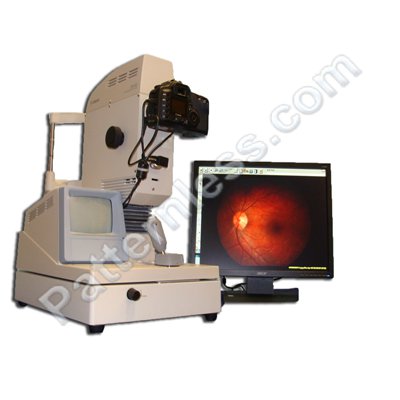

Canon DGi Digital Fundus Camera - Non Mydriatic
More than 10 available
Details
Shipping: US-Mainland: $450.00 (more destinations)
Sales Tax: check
Condition: Used
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
Come with Imacam Software
Quick Access to Images
• Images taken can be immediately accessed
• Images produced are ideal for diverse applications including telemedicine, PC-based video conference, electronic filing, and remote storage.
Easy Alignment & Focusing
• Simple preparation for image capture
Fixation Target
• Eye fixation is simplified by user-friendly internal fixation target
Reduced Illumination
• Small amount of light needed to capture clear images
Specifications:
Type Non-mydriatic type
Angle of view 45 degrees
Operation distance 45mm from the front of objective lens
Minimum pupil diameter 4mm
Image size Ø 17mm on the sensor
Attachable digital camera Canon EOS Digital
Sensor resolution 8.8 megapixels with Canon EOS 20D
Patient's diopter compensation range Without compensation lens: -12 to +15D
With "-" compensation lens: -7 to -33D
With "+" compensation lens: +11 to +35D
Working distance adjustment Outer eye display: split pupil alignment
Retinal display: working distance dots
Fixation target Dot matrix
Light source Observation: halogen lamp, 12V / 50W
Recording: strobe tube, max. 300W
Built-in monitor 5-inch monochrome TV monitor
Data output RS422
Power supply 110 - 120V AC, 60Hz
220 - 240V AC, 50 / 60Hz
Dimensions (W x L x H) 324 x 496 x 590mm (12.8 x 19.5 x 23.2in.)
Weight Approx. 23kg (50.6lbs.)
Components:
Main unit 1
Objective lens cap 1
Camera mount cap 1
Chin rest paper 100 sheets
Power cable 1
Dust cover 1
Blower brush 1
Camera cable 1
Imacam Image Viewer software 1
