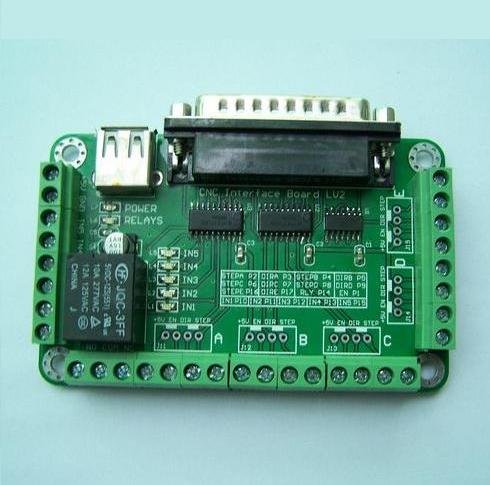

CNC Breakout Board adapter for PC Stepper Motor Driver

CNC interface board, you can make your computer into a powerful CNC controller!

5 axis Breakout board
Compatible: KCAM4 MACH EMC2
Built in DB25 male connector
It is with 4-wire limit switch to insure our safty movement
It is with relay port to contro the cnc spindle
Working voltage is 5VDC and support with MACH3,EMC2,KCAM4 software
Size:9x5.7cm



25-pin parallel port control is defined as follows:

DB25 control pin (PIN)
The pin of the drive board
Comment



1
STEPB
B(Fifth axis)pulse signal

2
STEPX
X(First axis) pulse signal

3
DIRX
X(First axis) direction of the signal

4
STEPY
Y(Secondaxis)pulse signal

5
DIRY
Y(Second axis)direction of the signal

6
STEPZ
Z(Third axis) pulse signal

7
DIRZ
Z(Third axis) direction of the signal

8
STEPA
A(Fourth axis) pulse signal

9
DIRA
A(Fourth axis) direction of the signal

10
LIMIT-1
Limit input interface 1

11
LIMIT-2
Limit input interface 2

12
LIMIT-3
Limit input interface 3

13
LIMIT-4
Limit input interface 4

14
DIRB
B(Fifth axis) direction of the signal

15
Vacant


16
RLY
Relay control

17
EN
All axis enable

18-25
GND
GND




Remark:This 5 axis breakout board can connction with many driver type as a CNC 3/4/5 axis driver controller kit,If needed, please contact us!



Packing list:

1 * 5 Axis Interface Adapter

1 * USB cable

1 * DB25 Parallel Cable
