$50.00
Add to Cart

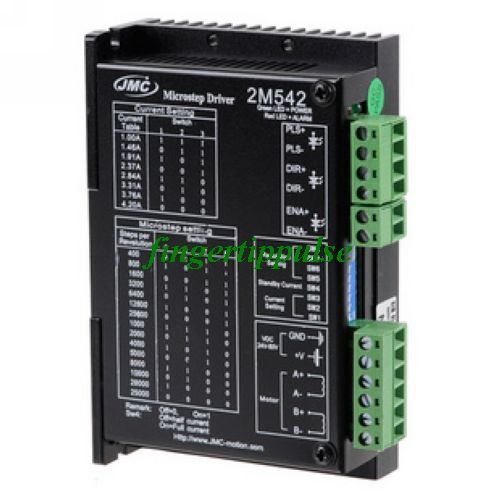

CNC Stepper Motor Driver 2M542 4.2A Controller f Router system
More than 10 available, 2 sold
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
The 2M542 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving 2-phase hybrid stepping motors.
Features :
High performance, cost-effective
Supply voltage up to +50 VDC
Output current up to 4.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 200 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
15 selectable resolutions in decimal and binary, up to 25,000 steps/rev
Suitable for 2-phase motors
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current protections
Package Content：
1 x CNC Stepper Motor Driver 2M542 4.2A
TE81
Features :
High performance, cost-effective
Supply voltage up to +50 VDC
Output current up to 4.2A
Self-adjustment technology
Pure-sinusoidal current control technology
Pulse input frequency up to 200 KHz
TTL compatible and optically isolated input
Automatic idle-current reduction
15 selectable resolutions in decimal and binary, up to 25,000 steps/rev
Suitable for 2-phase motors
Support PUL/DIR and CW/CCW modes
Short-voltage, over-voltage, over-current protections
Package Content：
1 x CNC Stepper Motor Driver 2M542 4.2A
TE81
CN, Guangdong
