QLdsPIC3 PIC MCU LCD RS232 ICD Chip Development Board
More than 10 available
Details
Shipping: US-Mainland: free (more destinations)
Condition: Brand new
*The store has not been updated recently. You may want to contact the merchant to confirm the availability of the product.
This auction is for PIC Development Board QLdsPIC3
--------------------------------------------------------------------------------
PIC 16bit MCU Development Board -- Demo board for PIC Microcontroller with the highest cost performance
Overview

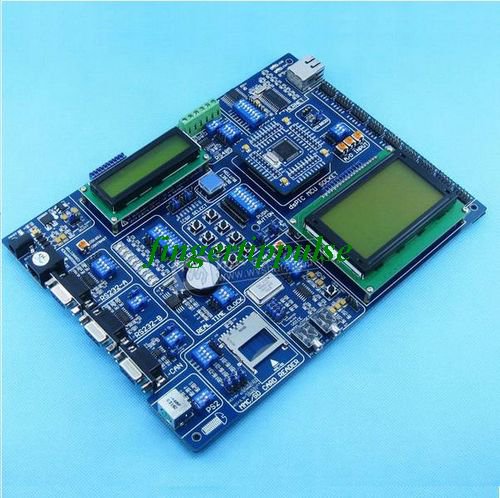

The QLdsPIC3 development board is an experimental development board designed by QLS Electronic by integrating its main characteristic function module based on variety of 16-bit microcontroller DEMO boards home and aboard, the main circuit of which origins from the standard DEMO board and reference application circuit of MICROCHIP Co. The design of board resource is completely open which can be flexibly extended, is a good assistant for mass of engineers to deal with the 16-bit MICROCHIP microcontroller software and hardware design.
The QLdsPIC3 development board supports PIC24FJ96GA008 and other chips compatible with pin, and the chip module can be changed.
The QLdsPIC3 development board supports dsPIC30F6014A and other chips compatible with pin, and the chip module can be changed.
The QLdsPIC3 development board supports dsPIC33FJ128GP708 and other chips compatible with pin, and the chip module can be changed.
A Programmer/Debugger is required to work with this PIC development board, please consider the MCD2.
What's On Board
Power supply module, Jump select VDD for 5V or 3.3V
Master controller chip module
ICSP Connect port,it can connect icd2/icd3/mcd2/pickit2 for program or debug
Master controller chip ICSP I/O Pin select
Reset key-press
LED module
Key-press module
A/D converter input module
DS18B20 digital thermometer module
Real time clock module by PCF8583 (Battery is included)
16*2-character LCD
16*2 LCD backlight potentiometer
128*64- Graphic LCD
128*64 LCD backlight potentiometer
SD/MMC card Read/Write Module
PS2 module
CAN bus module by mcp2551
RS232 module B
RS232 module A
RS-485 and RS-422 communication module by MAX489E
Ethernet module by ENC28J60
Si3000 Voiceband Codec with MIC In/Speaker Jacks
All pins are taken out on IDC10 connectors to make them available for further connections
Package Contains
QLdsPIC3 PIC 16 bit Development Board (including one dsPIC30F6014A MCU card, one 16*2 character LCD, 128*64 Graphic LCD)
DC Power adapter (input: AC110-240V 50/60Hz, output: DC9V 1000mA)
RJ12 to RJ12 ICSP Cable
RJ45 LAN Cable
DuPont wire x 20
User Guide CD (User manual PDF in English, PCB Layout & Schematic PDF, Sample code (C30), MPLAB IDE, Chip's Datasheet)
