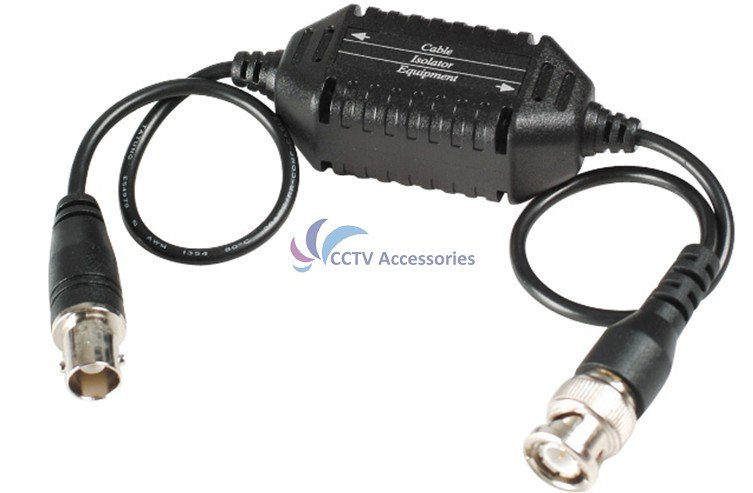

BNC Ground Loop Isolator Video Surveillance

Item#:DSC-GB01

Video Ground Loop Isolator could reduce "Ground Loop Interference" with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials, differences in ground potentials are typically caused by unbalanced power line loads.

Description:
• 100% brand new and high quality
• BNC male to BNC female with mini cable 15 on both sides
• Passive, no power required
• Prevents video-signal distortion caused by video ground loops
• Eliminates picture tearing , cross talk and rolling
• Built in video BALUN, perfect to work with DVR to immunity DVR interference , for extra interference rejection
• Built in TVS for surge protection
• Insertion loss: 0.5dB
• Frequency response: 0-3dB at 10Mhz
• Input / output resistance: 75ohm
• Isolation voltage: DC 600V
• Insulation resistance: 100m ohm
• Transient voltage suppressors: 12Vrms
• Cable length: 50cm( approx)

Package includes:
• BNC Ground Loop Isolator Video Surveillance x 1
• English user manual x 1
