FP08 8 Relay Board Kit for PIC, AVR, 8051, Printer Port VB, LabVIEW 4.7 15 ratings

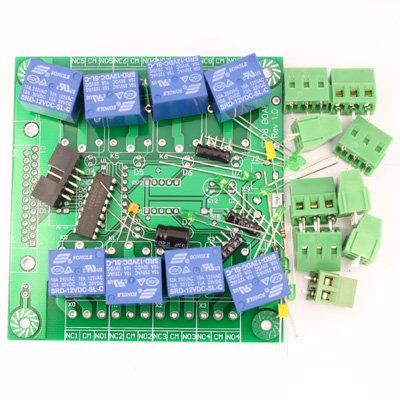

FP08 8 Relay Board Kit for PIC, AVR, 8051, Printer Port VB, LabVIEW

3 available, 105 sold

Details

Shipping: US-Mainland: $16.99 (more destinations)

Condition: Brand new


8 Channels Relay Board Kit
Easy-to-Program with Visual BASIC, C or LabVIEW programs
Come with Sample Code of Demo Program
Not Assembled

Board Features:
* Double side PCB trace can carry 10A current between Relays and Terminals
* 8 x Relay outputs, contacts rated 10A@125VAC, 7A@240VAC/28VDC
* Indication LED’s for output status
* Screw Terminal Blocks for Relay outputs and 12V Power Input
* DB25 female connector for connect to the computer parallel printer port (Option $2.00 US each).
* 2 x 5 Ribbon Cable Header for connect to PIC, AVR, Intel 8051 device
* Power input 12VDC / 350mA.
* Dimensions: 3.75 x 4.00inches (95 x 100mm)
* 4 x Φ3mm mounting holes

Software (delivery by e-mail):
* Windows based program to test the relay board for parallel port assembled board.
* VB 2005 test program sample source code
* LabVIEW program to test and timing control the relay board. (Option $10. and send by email)

Shipping as Kit Included:

Items_________Designator___Qty.____Description
FP08I/O PCB_______________1_______FP08I/O Relay Board Print Circuit Board
Relays________K1...K8______8_______SRD-12VDC-SL-C, SPDT 12VDC, 10A@250V
Terminals_____X0...X7_______8______3-Pole Terminal Block
Terminals_____X9___________1_______2-Pole Terminal Block
Diodes________D15_________1_______1N4004
LED__________D0...D7,PWR__9_______3mm, Green
Resistors______RP1,RP2______2_______4 x 750 Ohm, 1/8W, 5-SIP
Resistors______R1__________1_______820 Ohm, 1/8W
Capacitors_____C2__________1_______0.1uF, 25V, no-polarity
Capacitors_____C12_________1_______220uF, 25V
Transistors____U1___________1_______ULN2803A, 8 NPN, 500mA
Connectors____J3___________1_______2 x 5 Ribbon Cable Header

Optional Part:
Qty. Description________Price (each)
1 x DB25 Connector_____US $2.00

Shipping/Handling:
Please inquire us if you order more then 2 items or select other service then Lettermail (Canada)/Light Packet (USA).

Ship To_______S/H(US$)____Each Additional__Service
US-Mainland___$6.99_______$6.99__________Canada Post Light/Air Small Packets USA
US-Mainland___$19.99______$6.99__________Canada Post Expedited Parcel - USA
Alaska________$8.99_______$8.99__________Canada Post Light/Air Small Packets USA
Hawaii________$8.99_______$8.99__________Canada Post Light/Air Small Packets USA
Canada_______$3.99_______$3.99__________Canada Post Lettermail
Canada-ON____$15.99______$4.99__________Canada Post Xpresspost
International___$9.99_______$9.99__________Canada Post International Letter-post
