Diamabrush 15" Concrete Polishing Tool 400 Grit

Let us know the make and model of your machine so we can fit you with the right clutch plate.


50 Grit Polymer (Brown) 50,000+ Sq. Ft.


100 Grit Polymer (Black) 60,000+ Sq. Ft

200 Grit Polymer (Blue) 75,000+ Sq. Ft.

400 Grit Polymer (Green) 100,000+ Sq. Ft.

1000 Grit Polymer (Red) 150,000+ Sq. ft

2000 Grit Polymer (Tan) 3,000,000+ Sq. Ft.

Diamabrush Concrete Polishing Polymer Tool 50 Grit - 2000 Grit 12"-20"

The Diamabrush Concrete Polishing System is an innovative series of diamond abrasive tools that enables do-it-yourselfers & professionals to grind & polish concrete floors using standard cleaning equipment, such as Automatic Scrubbers & Floor Machines. The patented design of the Diamabrush tools eliminates the need for expensive, heavy-duty equipment & provides the end-user an easy & effective method to restore their concrete floors to a high gloss finish.

Key Features Include:

Use on existing, standard equipment such as automatic scrubbers & flooring machines.

Routinely clean with your final grit brush to not only maintain, but continually improve your floor's appearance.

The Diamabrush System is a mechanical polishing solution that is chemical-free.

Achieve professional results at a fraction of the cost of traditional polishing methods.

Polish your own floor yourself at your own pace through normal everyday cleaning.

The polishing tools are used wet for a dust-free operation.

Money-saving replaceable blades are available when blades wear down.

Blade retainer.

Wearable Substrate Blades.

Diamond Blade ( Retains Sharp cutting edge as the Tool Wears ).


Step One:

The first step in the Diamabrush Concrete Polishing System involves abrading the surface to prepare it for polishing. The Diamabrush Concrete Prep Tool consists of a super tough 25 or 100 diamond grit that is bonded to a metallic backing and assembled to flexible, steel spring blades. The flexibility of the blade helps ensure that the diamond insert remains in constant contact with the floor, regardless of imperfections to the cracked and damaged floor. This maximizes the effectiveness of the tool. As you use the Concrete Prep Tool, multiple layers of diamonds on the blades are constantly exposed, giving the tool a longer life.


Specially Designed Blade

The patent pending Concrete Prep Tool can be refurbished by simply replacing the blades. The process is easy. Simply order a replacement kit, loosen two screws, replace the blade, and then re-tighten the screws. It's just that simple.


Step Two thru Seven:

Diamabrush Grit Progression

Use the coarse 50 grit Gold polymer and proceed as you would with your regular floor cleaning routine. After a few passes using the 50 grit, the system progresses to the next grit. Grit progression is as follows; Step 2 - 50 grit Gold, Step 3 - 100 grit Black, Step 4 - 200 grit Blue, Step 5 - 400 grit Green, Step 6 - 1000 grit Red, Step 7 - 2000 grit Tan.

The system transforms ordinary cleaning machines into concrete polishing machines through everyday cleaning routines. No need for heavy, expensive equipment or harsh chemicals.

Progressing thru a series of increasing finer diamond grits, the pores of the concrete are progressively closed, ultimately resulting in a retail-like finish. Step 2 (100 Grit), Step 3 (200 Grit), Step 4 (400 Grit), Step 5 (1000 Grit), Step 6 (2000 Grit).

The multi-step system provides the flexibility for the user to choose how many steps are needed to achieve the desired surface finish.

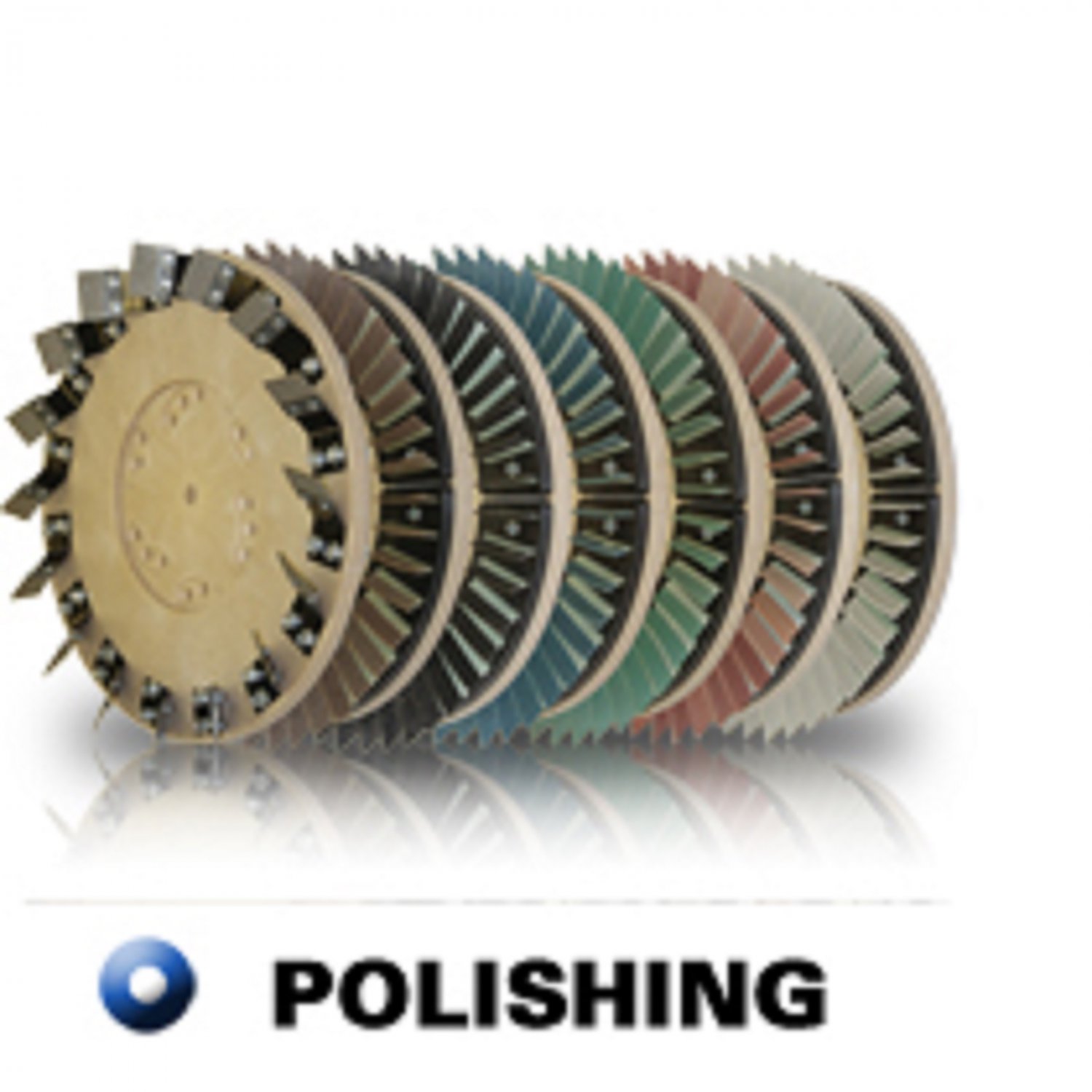

Six Polymer Tools:

The Diamabrush Concrete Floor Polishing System depends on the use of increasingly fine grit polymer inserts. Just like with the Concrete Prep Tool, each Concrete Polishing Tool includes flexible blades that allow the diamonds to remain in constant contact with the floor.

The polymer blades are designed around removable, slotted retainers. Instead of having to replace the entire tool due to wear and tear, simply order a blade replacement kit. All polymers are easily removed and easily replaced, which enhances the life of the tool.

Custom Mounting Adapter Available.

Training Video:



http://youtu.be/z52XWldSSgw



Intro:

http://youtu.be/qr0G3-_rNvY



Starting Grit:

http://youtu.be/WvDIssvdCDg



Restoration:

http://youtu.be/PK4IDbhvUGg



200 Grit through 2000 Grit:

http://youtu.be/T18kxF1e__w



Maintenance Stage:

http://youtu.be/M_Sb5aGMo8A



Blade Replacement:

http://youtu.be/gDG6xDrfbUI



Quick Tips & Conclusion:

http://youtu.be/kR7CBFrpvCo

239-357-1853 Craig.

Estimated Blade Life:

50 Grit Polymer (Brown) 50,000+ Sq. Ft.

12” Polymer Tool 50 Grit (Gold) $588.38

13” Polymer Tool 50 Grit (Gold) $601.82


14” Polymer Tool 50 Grit (Gold) $607.98

15” Polymer Tool 50 Grit (Gold) $615.50
16” Polymer Tool 50 Grit (Gold) $619.22
17” Polymer Tool 50 Grit (Gold) $644.12
18” Polymer Tool 50 Grit (Gold) $650.76
19” Polymer Tool 50 Grit (Gold) $659.42

20” Polymer Tool 50 Grit (Gold) $675.32

100 Grit Polymer (Black) 60,000+ Sq. Ft


12” Polymer Tool 100 Grit (Black) $568.54
13” Polymer Tool 100 Grit (Black) $581.98
14” Polymer Tool 100 Grit (Black) $588.16
15” Polymer Tool 100 Grit (Black) $595.68
16” Polymer Tool 100 Grit (Black) $599.38
17” Polymer Tool 100 Grit (Black) $624.30
18” Polymer Tool 100 Grit (Black) $630.92
19” Polymer Tool 100 Grit (Black) $639.60

20” Polymer Tool 100 Grit (Black) $655.50

200 Grit Polymer (Blue) 75,000+ Sq. Ft.


12” Polymer Tool 200 Grit (Blue) $568.54
13” Polymer Tool 200 Grit (Blue) $581.98
14” Polymer Tool 200 Grit (Blue) $588.16
15” Polymer Tool 200 Grit (Blue) $595.68
16” Polymer Tool 200 Grit (Blue) $599.38
17” Polymer Tool 200 Grit (Blue) $624.30
18” Polymer Tool 200 Grit (Blue) $630.92
19” Polymer Tool 200 Grit (Blue) $639.60

20” Polymer Tool 200 Grit (Blue) $655.50

400 Grit Polymer (Green) 100,000+ Sq. Ft.


12” Polymer Tool 400 Grit (Green) $568.54
13” Polymer Tool 400 Grit (Green) $581.98
14” Polymer Tool 400 Grit (Green) $588.16
15” Polymer Tool 400 Grit (Green) $595.68
16” Polymer Tool 400 Grit (Green) $599.38
17” Polymer Tool 400 Grit (Green) $624.30
18” Polymer Tool 400 Grit (Green) $630.92
19” Polymer Tool 400 Grit (Green) $639.60

20” Polymer Tool 400 Grit (Green) $655.50

1000 Grit Polymer (Red) 150,000+ Sq. ft


12” Polymer Tool 1000 Grit (Red) $768.02
13” Polymer Tool 1000 Grit (Red) $782.50
14” Polymer Tool 1000 Grit (Red) $789.30
15” Polymer Tool 1000 Grit (Red) $797.32
16” Polymer Tool 1000 Grit (Red) $801.32
17” Polymer Tool 1000 Grit (Red) $828.32
18” Polymer Tool 1000 Grit (Red) $835.38
19” Polymer Tool 1000 Grit (Red) $844.74
20” Polymer Tool 1000 Grit (Red) $861.90



2000 Grit Polymer (Tan) 3,000,000+ Sq. Ft.

12” Polymer Tool 2000 Grit (Tan) $793.04
13” Polymer Tool 2000 Grit (Tan) $808.04
14” Polymer Tool 2000 Grit (Tan) $815.04
15” Polymer Tool 2000 Grit (Tan) $823.32
16” Polymer Tool 2000 Grit (Tan) $827.44
17” Polymer Tool 2000 Grit (Tan) $855.34
18” Polymer Tool 2000 Grit (Tan) $862.62
19” Polymer Tool 2000 Grit (Tan) $872.28
20” Polymer Tool 2000 Grit (Tan) $890
