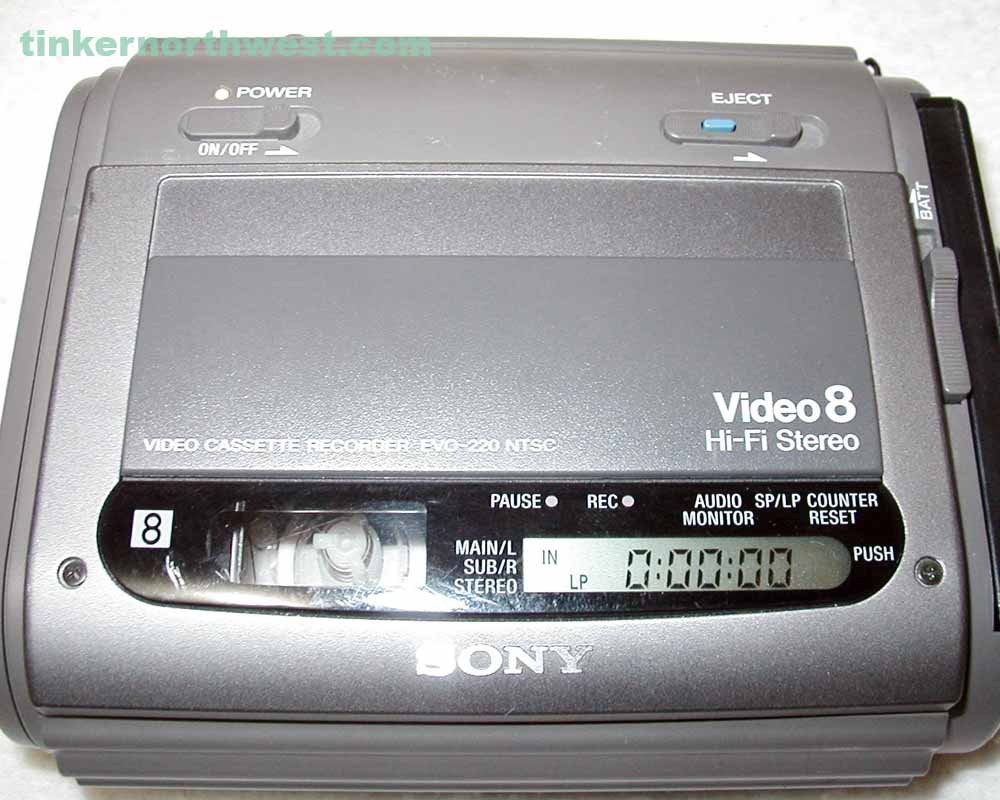

SONY EVO-220 VIDEO RECORDER 8MM HIFI STEREO.

8mm Videocassette Recorder.5 hour record/playback capability with P6-150MPC tape. Compact, lightweight VTR featuring quasi Hi8 playback, AFM stereo audio and AC/DC operation, control-L input, and linear time counter.



Features:

* Compact size and weight (5 7/8" x 2 1/2" x 5 1/8") (1 lb. 8 oz)
* Quasi Hi8 tape playback
* Quick start function: 2 seconds from STOP to REC mode
* SP/LP mode recording/playback capability
* Three-power source operation: AC power with the optional AC-S10 AC Adapter, car battery operation with supplied DCP-77 DC pack and battery pack operation
* Linear Time Counter
* Automatic switching of the Video/Audio In/Out according to the operation mode
* Control terminal for remote control operation
* AFM Hi-Fi stereo recording capability
* Secondary audio playback capability for Bi-lingual sound program
* Warning indication for battery and dew moisture condensation
* Up to 5 hours recording (LP) with P6-150MPB tape
* Slide cover safeguards control panel
* Requires only 2 seconds from stop to record modes
* By battery pack, car cord or AC supply
* AFM HI-FI stereo recording for sound that rivals the high quality video realized from the EVO-220
* Shows the tape position in hours, minutes and seconds to indicate tape running time
* Power Consumption: 3.8W
* Operating Temperature: 0 to 40°C (32 to 104°F)
* Storage Temperature: -20 to 60°C (-41 to 140°F)
* Tape Speed: SP mode: Approx. 1.43 cm/s
* Video: Phono Connector
* Audio: Phono connector (x2, stereo)
* Power requirements: 6.0V (Battery pack); 6.5V (DV Pack DCP-77); 7.5V (AC Power adapter AC-510)
* Video Input: 1.0Vp-p, sync negative, 75Ó, unbalanced
* Video recording system: Rotary two-helical scanning FM system
* Audio recording system: Rotary head, FM stereo system
* Playback time: SP mode: 2 hours 30 min
* F FWD/REW time: Approx. 8 min (with Sony P6-120 cassette)
* Phones: Stereo Mini-jack, 8Ó
* Video Signal system: EIA standard NTSC color
* Video Cassette: P6-15/30/60/90/120/150 8mm video format cassette
* : LP mode: 5 hours (with Sony P6-120 cassette)
* Recording Time: SP mode: 2 hours 30 min
* Video Output: 1.0Vp-p, sync negative, 75Ó, unbalanced
* Audio Input: -7.5dBs
* Audio Output: -7.5dBs
* A/V Out: 12-pin terminal
* REMOTE (Control): Stereo mini-mini-jack
* A/V Out: Stereo Mini-jack (monaural sound)
* A/V Out: 12-pin terminal
* : LP mode: 5 hours (with Sony P6-120 cassette)
* : LP mode: 5 hours (with Sony P6-150 cassette)
* : LP mode: Approx 0.72 cm/s
