Dell Fan D8794 Dimension 9100 Front Cooling Case Fan 120x38mm 5-pin/4-wire.

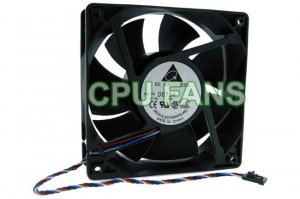

New Dell Dimension 9100 D8794 Front Cooling Case Fan, 120mm x 38mm with 5-pin/4-wire plug connector.

Delta Electronics is one of the Original Equipment manufacturers of Dell Computer cooling fans. The D8794 is a 120mm x 38mm, 12 Volt, High Speed, Brushless fan designed to work in the Dell Dimension 9100 models. This is a 5-pin/4-wire fan equipped with (PWM) Pulse Width Modulation.

Please take measurements, check for compatibility and your systems fan plug configuration before purchasing. See photos to compare.

Restore your Dimension 9100 computer to its Original condition with this High Quality fan with Genuine Dell parts.

*Just a Reminder, to prevent additional down time, Check those Rubber Mounts before making your purchase. As an option, Rubber Insulator Mounts are available for sale on the site. They are not included with the fan and do not always need to be replaced. You may find the listing by typing Rubber Mounts into the search Box.

Dell Fan D8794 Dimension 9100 Front CPU Case Cooling Fan, 120mm x 38mm with 5-pin/4-wire plug connector is in stock and ready to ship.

Specifications:

. Condition: New
. Mfr. Delta Electronics
. P/N: D8794
. Size: 120mm x 120mm x 38mm
. Type: PWM (Pulse Width Modulation)
. Rated Voltage: 12V
. Operating Voltage: 4.0~13.40 VDC
. Input Current: 1.60A
. Speed: 3900 RPM
. Air Flow: 148.34 CFM
. Noise Level: 51 dBA
. Bearing System: Dual Ball Bearing
. Wire length: 7.5"
. Connector: 5-pin/4-wire connector
