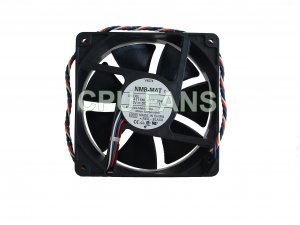

New Dell Optiplex 755 Case Cooling Fan, Y4574, RR527 and G9096, 120mm x 38mm with 5-pin/4-wire connector.

NMB is one of the Original Equipment manufacturers of Dell Computer cooling fans. This is a 120mm x 38mm, 12 Volt, High Speed, Brushless fan designed to work in the Dell Optiplex 755 model. This is a 5-pin/4-wire fan equipped with Pulse Width Modulation. Compatible part numbers: Y4574, RR527 and G9096.

Please check your systems fan plug configuration and compatibility before purchasing. See photos to compare.

Restore your Dell Optiplex 755 computer to its Original condition with this High Quality fan with Genuine Dell parts.

*Just a Reminder* To prevent additional down time, Check those Rubber Mounts before making your purchase. As an option, Rubber Insulator Mounts are available for sale on the site. They are not included with the fan and do not always need to be replaced. You may find the listing by typing Rubber Mounts into the search Box.

New Dell Optiplex 755 Case Cooling Fan, Y4574, RR527 and G9096, 120mm x 38mm with 5-pin/4-wire connector is in stock and ready to ship.


Specifications:

. Condition: New
. Mfr. NMB Minebea
. P/N: 4715KL-04W-B56
. Size: 120mm x 120mm x 38mm
. Type: PWM (Pulse Width Modulation)
. Rated Voltage: 12V
. Operating Voltage: 4.0~13.40 VDC
. Input Current: 1.30A
. Speed: 3600 RPM
. Air Flow: 130 CFM
. Noise Level: 50 dBA
. Bearing System: Dual Ball Bearing
. Wire length: 14"
. Connector: 5-pin/4-wire connector
