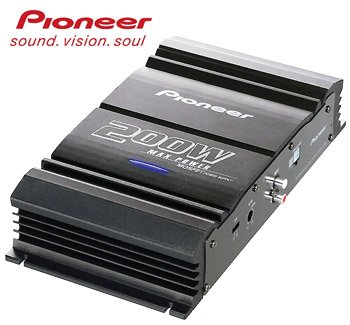

High power and high-quality sound go hand-in-hand with this Pioneer 2-channel bridgeable amplifier.
Its sturdy, durable design is versatile yet stylish.
The MOSFET driven power supply is able to drive 2 separate speaker channels as well as difficult multiple subwoofer leads for distortion-free sound.
Big sound, small package: only 6-1/8 wide, the compact GM-3000T offers 1, 2, and 3-channel operation (including a bridged 100W x 1 into 4 ohms), plus a Hi-Volt Input Level Control (400mV ~ 6.5V) and a Selectable Low-Pass Filter for added control and flexibility.
It features a pulse width modulation (PWM) circuit that efficiently outputs only the lower frequencies perfect for powering a sub.
Oversized screw-type power/ground terminals and RCA inputs are provided, and the 2-channel speaker level input offers added control.
Peak Music Power 200 Watts
Number of Channels 2
Load Impedance Capability 2~ 8 Ohm (Stereo), 4~8 Ohm (Bridged)
Continuous Power (4 ohm) 40W x 2
Continuous Power (2 ohm) 50W x 2
Continuous Power Bridged (4 ohm) 100W x 1
Frequency Response 10Hz ~ 45kHz
Total Harmonic Distortion 0.008%
Signal-to-Noise Ratio 100dB
Dimensions: 12' x 2-3/8' x 6-1/8'
Channel # Capability 1/2/3
PWM Regulated MOSFET Power Supply
Screw-Type Gold Plated Speaker Terminals
Balanced Isolator Input Circuit
Gold Plated RCA Inputs (2 Channel)
Speaker Level Input (2 Channel)
Input Level Control Hi-Volt (400mV - 6.5V)
Built-in Crossover Selectable LPF (80Hz, -12dB/Oct.)
