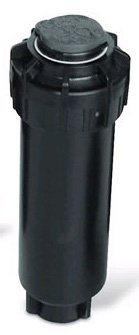

The 5000 Series Rotor is a rugged mid-range gear-drive rotary sprinkler, offering durability, performance, and the convenience of arc adjustment from the top, for residential and light commercial applications. This versatile rotor offers a standard rubber cover and the convenience of reversing full-and part-circle operation (up to 360 degrees) in one unit. And, with a tree of Rain Curtain™ nozzles, the 5000 Series Rotor offers excellent distribution for top-notch efficiency. All of this, a proven gear-driven design, and a five-year trade warranty, makes the 5000 Series Rotor one head that will "Take Performance to the Top."
Part Circle units (PC) are adjustable from 40 – 360 degrees.
Precipitation rate: .20 to 1.01 inches per hour (5 to 26 mm/h)
Radius: 25 to 50 feet (7,6 to 15,2 m)
Radius may be reduced up to 25% with radius reduction screw
Pressure: 25-65 psi (1,7 to 4,5 bar)
Flow Rate: .73 to 9.63 gpm (0,17 to 2,19 m3/h)
3/4" (20/27) NPT female bottom threaded inlet
Reversing full-and part-circle adjustment 40° – 360°
Full circle only adjustment 360°
