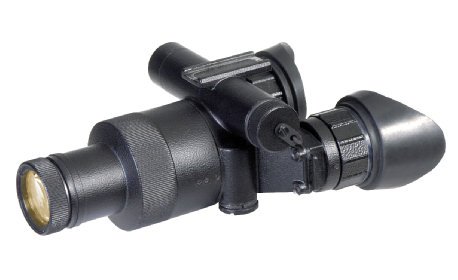

The NVG 7 is a single tube night vision goggle built around High Grade 18 mm Gen 2+ image intensifier tube and utilizes a pseudo binocular design for added observation convenience. It has an built-in IR light source for close-up illumination in complete darkness.
Light weight, rugged and a top notch performer the NVG7 is an exceptional choice for hands free usage.
The NVG7 is available with a wide range of image intensifier options to meet a wide array of specification requirements.
Intended for Night Time Surveillance, Ground Navigation, Vehicle driving and Weapons Operation yes
Helmet Mount Fully Adjustable Helmet mount for attachment of ATN NVG7-2 to a standard PASGT helmet. Helmet mount fits securely onto helmet via a rugged strapping device and grooved hooks. With helmet mount, NVG-7-2 can be positioned directly in front of user's eyes or flipped.
Automatic Bright Light Shut Off Standard
IR ON Indicator Warning light ON in the field of view
Low Battery Indicator Warning light blinking in the field of view
INTENSIFIER TUBE 2nd Gen. High Resolution
DETECTION RANGE 250M
RECOGNITION RANGE 175M
LENS SYSTEM F1:1.2, F35MM
RESOLUTION (LINES PER MM) 32-40 lp/mm
FOV 40 deg.
OBJECTIVE FOCAL LEIGH 25mm
FOCUS RANGE .25m
DIOPTER ADJUSTMENT - 6 to + 5
EYE RELIEF 15mm
EXIT PUPIL 16mm
INTERPUPILLARY DISTANCE Fixed 56 to 73mm
IR ILLUMINATION 50m
OPTICAL MATERIAL Heavy multi-coated glass
MATERIALS Aircraft quality CNC machined Aluminium composite
DIMENSIONS (MM) 140X100X60
IMMERSION 1m for 60 min
OPERATING TEMP -30 ° F TO +125 ° F
INPUT VOLTAGE 1.2 to 1.5 VDC
BATTERY One 3 V Lithium or one 1.5 V AA per customer request
BATTERY LIFE 10-20 HOURS
POWER SWITCH TYPE Push button
IR SWITCH TYPE Push button
