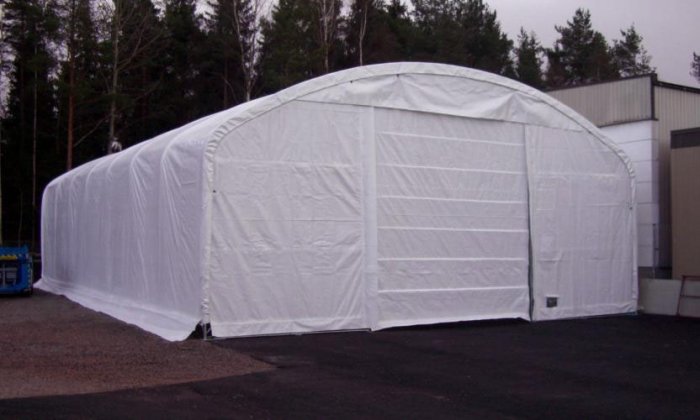

40ft W x 60ft L x 18ft H
Salt and Sand Storage
MDM Products 40x60 Buildings are designed forheavy commercial, agricultural and industrial use. Fromthe heavy steel galvanized frame to unique dual covertensioning system, the building is heavy duty from frontto back. Typical uses include large workshop areas,animal protection, long term jobsite storage, andmultiple truck or car storage. Completely packagedand ready for quick assembly, the frame is theheaviest available in single tube construction. Allframe components are made from heavy galvanizedmaterials. Main Cover, Door, and All Fabrics are madefrom Long-Life UV Resistant, Fire Retardant Polyethylenewith woven backing.
Contact us for shipping cost
All fabric components feature heat-welded seamconstruction. Unit features a unique dual covertensioning system that allows quick adjustment bothfront-to-back and side-to-side. The easy-up Doorcan be winched up from outside the building withlittle to no effort. Wind release flaps on both sidesallow for wind absorption. Long lasting cover designprovides for run-off of rain, or melting snow, toavoid water getting in through the perimeter ofthe cover. Each unit comes equipped with botha set of 14 duckbill earth anchors and a set ofAuger style anchors to secure the unit at allstrategic points.
Exclusive Domed Truss Features
* Mechanical rool-Up door on tracks with a gear box.
* 10' side wall clearance so you can store equiptment at the edges of your shelter.
* Ratchet down cover for a drum tight fit.
* Heavy duty 2 3/8" Dia. structural steel frame.
Nominal Size 40’ Wide x 60’ Long x 18’ High
Arches Eleven (11) on 48” Spacing 2-3/8” Frame Members
Standard End Door Size 12’ Width x 9'8" Height
Available Colors Outer Colors: White
All Interiors: White Only
Shipping Weight 4200 lbs shipped in 4 Crates Shipped via Motor Freight
Main Cover UV Protected Fabric Backed Poly Material 10 0z. Weight
Fire Retardant Standard Main Cover & Doors meet CPAI -84 Section 5
Anchors Twenty-Two (22) 36” Duckbill with U-Bolts & Drive Rod Std.
Stock Number 40x60x15(*)HSK
* - Color Prefix: Green, Grey etc.
