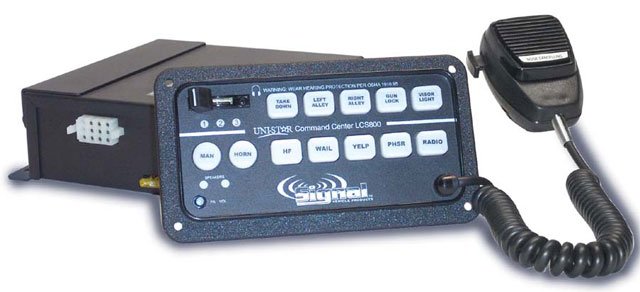

The Unistar Command Center combines a full feature 200 watt siren, an 8 funtion light control switch panel into one dual color keypad driven unit. The control head features a dual color lighted keypad, a 4 position progressive slide switch with LED indicators, LED speaker diagnostics and an attached noise canceling PA microphone. The amplifier and switch box mounts conveniently and connects to the control head through a telephone style cable.
Wail, Yelp, Air Horn, Phaser, Manual and Two Tone.
Dual Color Backlighting on Keypad.
Four Position Progressive Slide Switch with LED Indicators.
Eight Light Control Functions.
Integrated Public Address Microphone.
Automatic Self-Resetting Protection against Speaker Short Circuits.
LED Speaker Diagnostics.
Park Kill Input.
Positive Locking Wiring Harness Included.
Universal Bracket for Mounting.
Replaceable Jumpers for Option Selection.
Positive & Negative switching for AUX & Park Kill Inputs.
Drives One or Two 100 Watt Speakers.
High & Low Voltage Shutdown Protection.
Trunk Mount Amplifier.
30 Standard Function Replacement Labels.
Output: 100 or 200 Watts (1 or 2 speakers)
Voltage: 10V - 16V DC
Amp Draw: 8 Amps (per speaker)
Size: Control Head: 3 3/8" H X 6 3/4" W X 3/4" D
Size: Amplifier: 2 1/2" H X 7" W X 7 3/8" D
Weight: 8.5 lbs.
