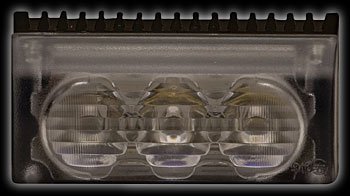

The redesigned LED Star provides an ideal starting platform or secondary addition to your vehicles warning light system. This LED (Light Emitting Diode) based product offers functionality, configuration and flash pattern options all-in-one compact device. Available in colors of red, blue, amber and white, the re-engineered LED Star incorporates multiple features, including selectable flash patterns, synchronization (Sync-In/Sync-Out) options for multiple LED Star applications, increased directional light output, enhanced weather proofing, encapsulated electronics and the bezel accessory kit.
Specifically designed with user safety, performance and installation flexibility in mind, this newest LED Star raises the bar for the next generation in discrete warning light products.
Chassis: Die-cast Aluminum
Length: 2.78 in. (7.1 cm)
Length: 3.75 in (9.6 cm) with optional Bezel kit
Depth: 1.43 in (3.6 cm)
Height: 1.33 in (3.4 cm)
Height: 1.56 in (4.0 cm) with optional Bezel kit
Electrical: Optimum Operating Voltage 13.8 volts DC (working range 12-15 volts DC)
Electrical: Stand-by Current Draw (not in use) .001 amp
Electrical: Operating Current Draw (13.8vdc) 1A max (determined by flash pattern activated)
