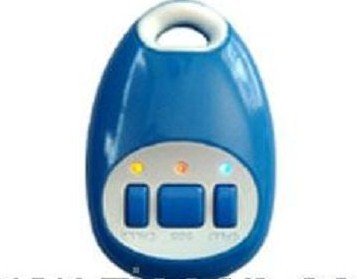

MIni Quad Band Personal GPS Tracker

Main functions:

1. Real-time locating and tracking. Sent a SMS to the GPS tracker and it will return you the longitude, latitude coordinate and moving speed of the tracking target, then you can find out the location accurately through the free Google Earth or other map software.
2. Geo-fence: It will send an alert to the authorized numbers when it breaches the restricted area that you set up before.
3. Two way talking communication: You can talk with the tracking target via the GPS tracker just like a cell phone and also can listen to the sound around the GPS tracker in 5meter secretly.
4. SOS button: press the SOS button and the GPS tracker will send a help alert and exact location to the authorized numbers for immediate rescue. At the same time, it will call the authorized number until the phone is picked up.
5. Overspeed alert: It will send an overspeed alert to the authorized numbers when the tracking target moves exceed of the restricted speed.
6. Support remote monitor: when the authorized number dial up the number in the tracker, it will picked up automatically, and you can monitor the voice around the device serectly.
7. Support quick dialing buttons for 5 preset phone numbers
8， Tracking on software by GPRS

Main features:
1. Built-in SIRF Star III Chipset, excellent for fixing the position even at a weak signal status.
2. Work well even in areas with limited sky view like urban canyons.
3. Built-in GSM/GPRS module, support 4-frequency GSM 850/900/1800/1900 MHz.
4. Working all over the world.
5. Support voice call.
6. Support SMS communication or GPRS TCP connection.
7. Get the position information via mobile phone SMS, or examine the path on the Internet.
8. The available SMS takes the control command change tracing function or switch GPS.
9. Support establishes FIVE telephone numbers.
10. The major technological index of the device is in conformity with the international standard of GSM mobile phone.
11. Long battery life
12. Portable, compact size, low power design.

Applications:
1. Monitor and protect child, elder and disabled.
2. Guard against theft of strongbox, vehicle and outdoor equipments, cargo.
3. Based on GSM network and INTERNET, this series of products provide personalized services for companies, organizations and individuals.
4. Users can search the positioning or movement tracking information provided by this product in personal computer

Size:68*40*20mm
Weight:50g

Specification：
GSM
GSM/GPRS Module Sim300 Module
GSM 900MHz
GSM 1800MHz
GSM 1900MHz
GSM Antenna Built-in
GPS
Chip SiRF StarIII GSC3F/LP-7979
Frequency GPS L1 1575.42MHz,C/A-code
Channels 20
Data protocol NMEA0183 or Binary
Start Time(open sky) Cold Start : 40sec
Hot Start : 3sec
GPS Antenna Active Patch antenna
Standby Current 1mA @2.85V All
Tracking Current 31mA @2.85V All
Accuracy 10~20m
Electrical
Operating Voltage 3.3V
Charge Voltage 5V
Operating 80mA
Talk 100mA
Battery Li-ion 800mAh
Others
Operating temperature -20℃ to +50℃
Speaker (Built-in) 32Ohm/0.5W
Microphone (Built-in) 58db
