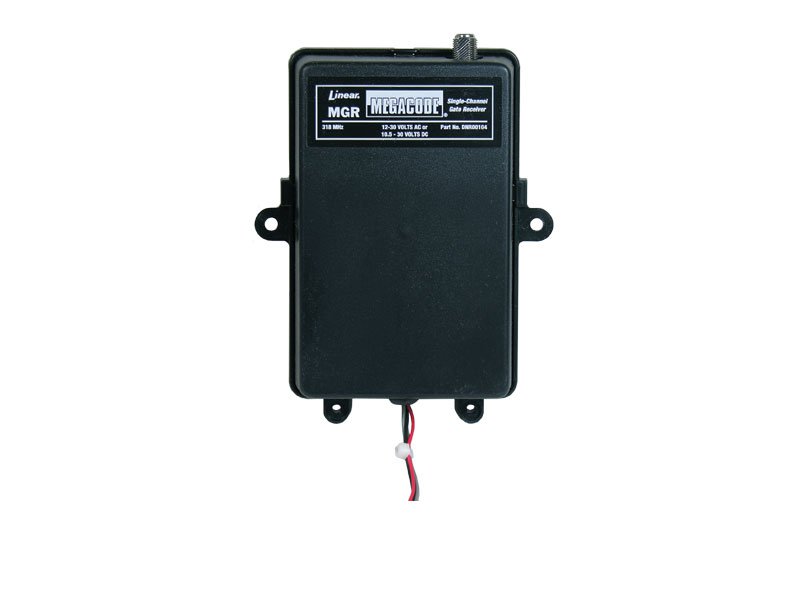

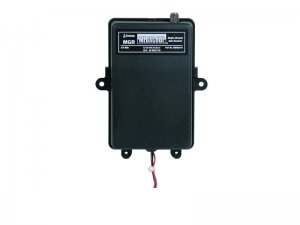

The Linear MGR is a Single Channel Receiver designed for use with automatic gate operators or garage door openers where a remote antenna is needed to provide for additional receiver range.

The Linear MGR uses MegaCode radio format with over a million possible code combinations. This receiver can store up to 40 different remote transmitters in its memory. The unit is comptaible with any of the following Linear remotes: MCT-1, MCT-2, MCT-3, MCT-11, ACT-21, ACT-22, ACT-31, ACT-34, MT-1B, MT-2, MDT-1, MDT-2, and MDT-4.

This receiver can be powered with either 12 or 24 volts, and includes a whip antenna and 3 foot
coaxial cable.

Features
-Single Form ”A” (normally open) relay rated at 30 Volts AC/DC up to 5 Amps
-Supplied with whip antenna, three feet of coaxial cable, and bulkhead connector
-Memory: storage for up to 40 MegaCode transmitters
-Power: 12 - 30 VAC or 10.5 - 30 VDC
-Codes: 1,000,000+ (MegaCode format)
-RF frequency: 318 MHz
-Dimensions: 3.625" W x 5.25" H x 1.5" D
