Plays Any DVD From Any Country Anywhere!

Factory Built PAL/NTSC Progressive Scan

Factory Built PAL/NTSC Conversion Function

Factory Built 110/220V Worldwide Voltage

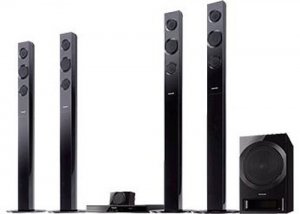

SC-XH185 DVD Multi-System Home Theatre System


5.1 ch / 1000W RMS Output

Dynamic Bass Sound - Powerful Bass-reflex Subwoofer with 20cm Big Woofer

High Quality Picture - HDMI 1080p Up-Conversion

Selectable Speaker Layout - 5.1ch Surround Layout / 5.1ch Front Layout

ARC (Audio Return Channel)

Wireless Ready for Rear Speakers (With purchase of SH-FX71)

Easy Setup


Features:

Dynamic Bass Sound - Powerful Bass-reflex Subwoofer with 20cm Big Woofer
This model features a large, newly developed bass reflex subwoofer. Compared with conventional models, the new bass-reflex subwoofer has approximately 1.5 times the volume, and the subwoofer speaker unit has been increased to 20 cm. The size of the speaker magnet has been doubled for the large subwoofer, and enlarged as well for the center, front and rear speakers, to allow finer, faster movement of the diaphragm for more powerful bass.

High Quality Picture - HDMI 1080p Up-Conversion
High-quality images can be enjoyed. This features a 1080p Up-conversion function that converts standard-definition images (720×576 pixels) from DVD sources into high-definition images (1920×1080 pixels). These up-converted signals maximize the performance of HD flat screen TVs, providing vivid, sharp and exceptionally detailed high-resolution images.

Selectable Speaker Layout - 5.1ch Surround Layout / 5.1ch Front Layout
The Panasonic DVD Home Theaters are easy to install and simple to operate. All models offer a Selectable Speaker Layout that allows the speakers to be placed in front of the listening position for a surround sound effect. The layout can be selected to match the living room.

ARC (Audio Return Channel)
This model is compatible with the ARC (Audio Return Channel) feature, which makes it possible to receive audio signals from the TV, on top of the preexisting HDMI function of sending audio/video signals to the TV with just one cable. This feature simplifies connection by eliminating the audio cable connection between the TV audio output and the main unit&s audio input.

Wireless Ready for Rear Speakers
The SC-XH185 is Wireless Ready for Rear Speakers so there is no need to physically connect the main unit to the wireless kit for rear speakers (With purchase of SH-FX71). This wireless rear speaker connection with SH-FX71 keeps the room neat and uncluttered.

Specifications:

Playable Discs
DVD
DVD-Video Yes

DVD-R*2/DVD-R DL*2/DVD-RW*2
DVD-Video Yes

MP3*3 Yes (DVD-R/ DVD-RW)

DivX®/DivX HD*1 Yes / -

JPEG Yes (DVD-R/ DVD-RW)

+R*2/ +R DL*2/ +RW*2
Video Yes

CD, CD-R/-RW*4
CD-DA Yes

MP3*3 Yes

DivX®/DivX HD*1 Yes / -

JPEG Yes

Audio System
Output Channel 5.1ch

Power Output -Home Theater Mode (RMS)
Total Power 1000W

Front 160W x 2 (1kHz, 3ohms, 10% THD)

Center 160W (1kHz, 3ohms, 10% THD)

Surround 160W x 2 (1kHz, 3ohms, 10% THD)

Subwoofer 200W (100Hz, 3ohms, 10% THD)

Dolby® Digital Yes

Dolby® Pro Logic® II Yes

USB
Slot Yes

Front For Playback


USB Standard USB 2.0 Full Speed

Playback
MP3*3 Yes

DivX®/DivX HD*1 Yes / -

JPEG Yes

High Quality Picture
1080p Up-Conversion with HDMI Yes

High Quality Sound
Extra-Large Bass-Reflex Subwoofer Yes

EQ/ Center Focus/ Subwoofer Level Yes

Easy to Use
Wireless Rear Speakers Ready (requires additional adapter)

Selectable Speaker Layout Yes

ARC Yes

Easy Setup Yes

VIERA Link™ (HDAVI Control 5) Yes

Karaoke Yes

Speaker System
Front
Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Center
Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Surround
Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Full Range: 6.5cm Cone Type

Subwoofer
Configuration 1 way 1 speaker, Bass-reflex

Speaker Unit [Approx.] Woofer: 20cm Cone Type

Terminal
HDMI Output Yes

Video Output Yes

Optical Input Yes

Analog Audio Output
RCA Yes (AUX)

Mic Input Yes (2)

Others
Video System PAL, NTSC

Power Supply AC 110-127/ 220-240V, 50/60 Hz

Power Consumption
Normal Use [Approx.] 80W

Standby [Approx.] 0.4W

Station Presets 30-FM

Dimensions, Weight
Main Unit
Dimensions (W x H x D)*6 [Approx.] 430 x 47 x 263 mm

Weight [Approx.] 2.4 kg

Front Speaker
Dimensions (W x H x D) [Approx.] 292 x 1185 x 292 mm

Weight [Approx.] 2.42 kg

Center Speaker
Dimensions (W x H x D) [Approx.] 146.5 x 84 x 78 mm

Weight [Approx.] 0.5 kg

Surround Speaker
Dimensions (W x H x D) [Approx.] 292 x 1185 x 292 mm

Weight [Approx.] 2.42 kg

Subwoofer
Dimensions (W x H x D) [Approx.] 232 x 406 x 316 mm

Weight [Approx.] 5.7 kg


Provided Accessories:
Remote Control

Batteries

Instruction Book

Power Cord
