Across the line or DOL type magnetic motor starter. Pre-wired controls including momentary start/stop switch. Wired for self latching with latch break by the overload relay or stop switch.

Pre-wired for easy installation.

Starter is mounted on a heavy steel back plate.

Combination Start/Stop switch with LED indicator. 22 mm European type. Steel bezel with modular contact blocks, expandable. UL certified industrial.

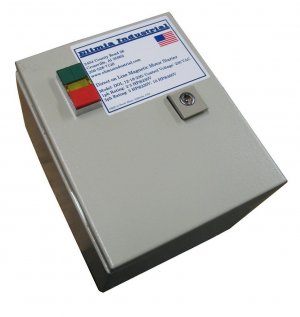

Real nice hinged door, steel enclosure sealed to IP 65. Removable "gland" plate in the bottom of the enclosure allows for easy wiring. Steel latch keeps to the closed tight. Enclosure size is ~250mm x 200mm x 150mm.

Contactors are high quality European style. Review curves in picture section. UL certified industrial.

Overload can be set for manual or automatic reset operation. Rotary dial allows for overload to be set for various values. List is provided below. Overloads are UL certified industrial.

Thermal type overload class 10A. Please see link below for an informational video of features.

http://www.chint.net/product/case.php?l=en&tq=0.2.11.1954.1956.


IEC type DOL motor starters are made up of primarly two parts. A contactor and overload device. Both devices have maximum ratings and the overload has maximum and minimum ratings. You should choose a motor starter that fits both criteria.

Contactor contact ratings (Max):

1 PH @ 240VAC = 3 HP or 17 Amps

3 PH @ 200VAC = 7.5 HP or 25.3 Amps

3 PH @ 240VAC = 7.5 HP or 22 Amps

3 PH @ 480VAC = 10 HP or 14 Amps

3 PH @ 600VAC = 10 HP or 11 Amps

Overload rating is 12 - 18 Amps.

Control Voltage is 120 VAC and is pre-wired. The control voltage is the Voltage used to magnetically engage the starter. It is very common to use a 120V or 240V control Voltage even while running a machine on 480V.

One or several overloads may be available for this starter. Your equipment full load Amp rating should fall within the overload settings to be properly protected.

How to choose the right motor starter:

-Determine your machine load. That can be HP or KW or KVA.

-Know your power source. Example, 230 single phase or 230 three phase or 460 three phase etc…

-Understand the difference between control voltage and line/load voltage. Control voltage is the voltage used to activate the motor starter. Line/load voltage is the voltage needed to run your equipment.

-All motor starters will have maximum ratings. This is shown in various ways as Max HP or Max Amps at a given voltage. Your equipment load should not exceed these values. A motor starter can be rated at say 20 HP at 460 Volts but only 10 HP at 230 Volts. That is because the KW (Kilowatts) is basically the same.

-The magnetic contactor can be rated much larger than the load and it is sometimes a good idea to do so… Most contactors can be fitted with various size overloads (sometimes called overload relays) provided the rating does not exceed the contactor ratings. Choose the overload to match your load.

Example, your load is a table saw.

It has a 5 HP, 3 phase motor.

Your line/load voltage is nominal 230 VAC 3 phase.

Your motor FLA (Full Load Amps) is 14 Amps.

We would recommend the following:

Model DOL 13-18-230(25)

That is a motor starter with a size 25 or 25 Amp contactor, with an overload of 13-18 Amps. For the simplest installation we would recommend the control be 230 Volts.

90 day replacement Elimia warranty.

Great price!

We have pre-wired DOL motor starters available from 0 HP to 100 HP.

Please call 256-528-7120 for more info or to make payment with a credit card. We also build complete control panel assemblies to your specifications.


Guarantee: Satisfaction Guaranteed! If you are not happy with your purchase within two weeks of arrival you can return it. No restocking fee! Must be returned in orginal condition to receive full refund.

At store pick up and shipping: There is no charge for on-sight pickup.

Please note: All items should be professionally inspected and tested prior to installation or use. We are not liable for damages, injuries or death relating to our products. All items are described based on our observation to the best of our ability. We usually ship same day or at the latest 2 business days after receiving payment. If you need something expedited please let us know. Same day shipping may be available.

Payments: We accept Paypal, Google Checkout, Money Orders, Cashier Checks, Personal Checks (14 days clearing required unless approved) and all major credit cards. Credit card payments can only be made over the phone.

We reserve the right to refuse payment from buyers registered in foreign countries or locations with non corresponding ship to addresses. Additionally, we reserve the right to refuse payment from any buyer which will feel are acting in a malicious manner.

Feedback: Once you are satisfied with your purchase please leave us feedback, please contact us if you have any problems.

DOL 23-32-480 (32) IP65
