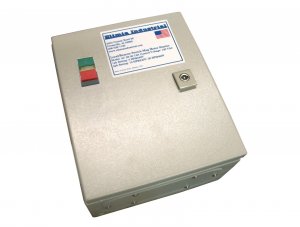

This is for a new Elimia magnetic motor starter.

Motor starters provide protection for your equipment above and beyond normal circuit breakers.

Elimia DOL motor starters are pre-wired for magnetic latching. This means that in the event of a power blink your starter will unlatch and open the contacts. When power returns your starter will require restarting which enables safe machine starts.

Pre-wired industrial grade metal bezel start stop switch with LED ON indicator.

Easy installation, just bring power in and power out. No switches to wire up! IEC type DOL motor starters are made up of primarily two parts.

A contactor and overload device. Both devices have maximum ratings and the overload has maximum and minimum ratings. You should choose a motor starter that fits both criteria.

Ratings of this starter (Max Contactor Rating):

1 phase- 10 HP @ 240 VAC Max FLA 50 Amps
3 phase- 15 HP @ 200 VAC Max FLA 48.3 Amps
3 phase- 20 HP @ 240 VAC Max FLA 54 Amps
3 phase- 30 HP @ 480 VAC Max FLA 40 Amps
3 phase- 30 HP @ 600 VAC Max FLA 32 Amps

Control voltage is 480 VAC and is pre-wired.

High quality UL listed/approved IEC contactor, overload and switches.

Overload can be set for manual or automatic reset operation.

Thermal type overload class 10A. Please see link below for an informational video of features.

http://www.chint.net/product/case.php?l=en&tq=0.2.11.1954.1956.Verify your equipment FLA rating to determine overload size needed.

Overload rating is 37 - 50 Amps.

Heavy duty steel enclosure with hinged door. Sealed to IP65 standards. Enclosure size is 250mm x 300mm x 150mm OR 250mm x 300mm x 200mm.

90 day replacement Elimia warranty.

Great price!

We have pre-wired DOL motor starters available from 1 HP to 1000 HP.

Please call 256-528-7120 for more info or if we can help sizing a starter.
