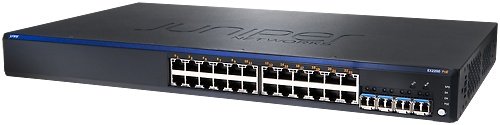

24-port 10/100/1000BASE-T Ethernet Switch with four SFP GbE Uplink Ports + 100 W AC PSU
The EX2200 line of Ethernet switches delivers an economical standalone solution for access layer deployments in branch offices and low-density campus networks, meeting the connectivity requirements of today's high-performance businesses.
The single rack unit EX2200 provides a compact solution for crowded wiring closets and access locations where space and power are at a premium. The EX2200's 10-inch depth, low power consumption, and low-acoustic fans, also make it an environmentally friendly solution that is ideal for open office deployments.
Four EX2200 switch models are available, offering 24 and 48 10/100/1000BASE-T ports, with or without standards-based 802.3af Class 3 Power over Ethernet (PoE) for supporting networked devices such as telephones, video cameras, and wireless LAN (WLAN) access points. The EX2200 also supports the 802.3at PoE+ standard, offering additional power for devices such as multiple radio IEEE 802.11n wireless access points.
Four fixed front panel Gigabit Ethernet (GbE) uplink ports support high-speed backbone or link aggregation connections between wiring closets, and upstream aggregation switches without sacrificing base ports, offering true 24+4 and 48+4 configuration options.
The EX2200 switches also run the same Junos operating system that powers other Juniper switches, routers and security devices, providing a consistent set of features and capabilities across the Juniper network infrastructure.
Form Factor: Fixed platform
Dimensions: (W x H x D) 44.1 x 4.3 x 25.4 cm, 1 rack unit
EX2200-24P/24T: 56 Gbps
EX2200-48P/48T: 104 Gbps
EX2200-24P/24T: 42 Mpps (wire speed)
EX2200-48P/48T: 77 Mpps (wire speed)
10/100/1000BASE-T Port Densities: 24 / 48 per platform
100BASE-FX / 1000BASE-X (SFP) Port Densities: 4 per switch (fixed ports, SFP required)
Resiliency: Integral power supply and fans
24T and 48T (non-PoE): Autosensing; 100-120 V / 200-240 V; AC 100 W
24P and 48P (PoE): Autosensing; 100-120 V / 200-240 V; AC 550
Operating System: Junos
Traffic Monitoring: sFlow (roadmap)
QoS Queues / Port: 8
MAC Addresses: 8,000
Jumbo Frames: 9216 Bytes
IPv4 Unicast / Multicast Routes: 6,500 / 0
Number of VLANs: 1,024
ARP Entries: 2,000
