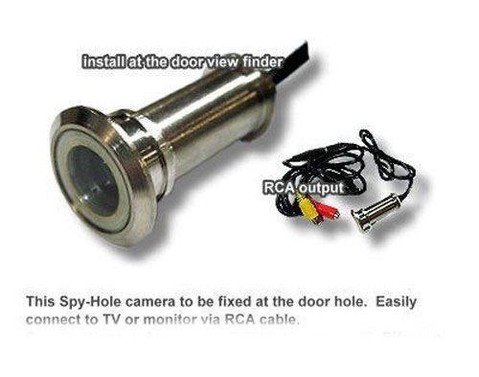

This product is the spy-hole camera for the door.
It is available for any thick door,it is easy to istall.
1 Fix the spy-hole camera on the door hole directly
2 Connect the camera AV cable(yellow)with the monitor
3 Connect the camera power plug(red)with the adapt(8V-12V/mA)
Array Size :EIA(NTSC)320X240 CCIR(PAL)366X288
Effective image area:1/4"
Auto Electronic Exposurer(seconds) :1/50-1/6000
View Angle :92 Degree
S/N Ratio :46dB (AGC+1X)
Power Supply :DC+ 8V-12V
Current Consumption :ã35mA
Exterior Size :L=42mm ï¿ 13.9mm
1 x CCTV Door Eye Spy Hole Security Color Camera Wired
