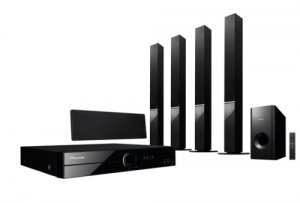

Pioneer HTZ-202DVD Region-Free PAL/NTSC DVD Home Theatre System

HTZ-202DVD Model consists of:

XV-DV202 DVD/CD Receiver
S-BD-808T Speaker System

S-DV202SW Subwoofer

USB movie playback
This useful feature allows the playback of DivX videos from USB mass storage class devices in addition to CD-R/CD-RW/DVD-RW discs. DivX video lets you enjoy highly compressed files in quality pictures.

CD -> USB Recording
Without the need for a PC, you can directly record songs from CDs to USB devices. The data is stored in MP3 format with the choice to choose the bit rate from 128/192/320 kbps.

Karaoke function
Convert your home theatre system into a karaoke system! This is now possible thanks to dual mic inputs with volume control, key control and echo.

Specfications:

Functions:
5 (DVD/Tuner/AUX/USB/Portable In)


Amplifier:

Output Power PMPO 2600 W

RMS Front, 1 kHz, 10 % THD, 4 ohms 30 W/ch

Centre, 1 kHz, 10 % THD, 4 ohms 30 W/ch

Surround, 1 kHz, 10 % THD, 4 ohms 30 W/ch

Subwoofer, 100 Hz, 10 % THD, 4 ohms 60 W (8 ohms)

Playback Media and Playback Modes

Progressive Scan (PAL/NTSC) Yes

DVD-Video/DVD-R/DVD-R DL/DVD-RW*1 Yes*2

DVD+R (Video)/DVD+RW (Video)*1 Yes

CD/CD-R/CD-RW*1 Yes

Music File: MP3, WMA Yes

Video File: DivX Video, JPEG Yes

GigaByte Music (DVD Data Disc Playback) Yes

PHOTO + MUSIC MIX Yes

Surround Format and Sound Features

DTS, Dolby Digital, Dolby Pro Logic II Yes

Bass Mode Yes

Karaoke (Key Control, Echo) Yes


Terminals:

USB Memory Audio Ready 1
HDMI 1
Component Video Out 1
S-Video Out/Composite Video Out 0/1
Analogue Audio Input 1


Power Requirements: 110-240 V 50/60 Hz

Dimensions (W x H x D)/Weight

Receiver Unit (mm/kg) 360 x 66 x 327/2.5

Front Speaker (mm/kg) 260 x 1097 x 260/3.8

Centre Speaker (mm/kg) 300 x 87 x 65/0.6

Surround Speaker (mm/kg) 260 x 1097 x 260/3.8

Subwoofer (mm/kg) 190 x 360 x 320/3.8


Provided Accessories:
Remote Control
Batteries
Instruction Book
Stereo AV Cables - RCA Type (Red, Yellow, White)
AM/FM antenna cable
Speaker Wires
Power Cord
